Key Features
- ETSP-TS series (basket moving type) are designed for thermal shock testing of components or equipment, subjecting them to rapid temperature changes as defined in IEC 60068-3-5:2001, MIL-STD-810G, NATO STANAG 4370
- Temperature range: cold zone -70 °C to -10 °C, hot zone ambient to 200 °C; temperature accuracy: less than ±0.3 °C
- Hot zone heats from room temperature to +200 °C within 15 minutes; cold zone cools from room temperature to -70 °C within 45 minutes
- Fast thermal response with continuous and linear control over the whole range; temperature recovery within 5–15 minutes, depending on test conditions
- Low level of vibration during basket movement, using a pneumatic cylinder and guide rail; a double gasket reduces air mixing between the cold and hot chambers
- Seven models: ETSP-TS50, TS60, TS100, TS115, TS150, TS220 and TS300
About the ETSP-TS Series Thermal Shock Chamber

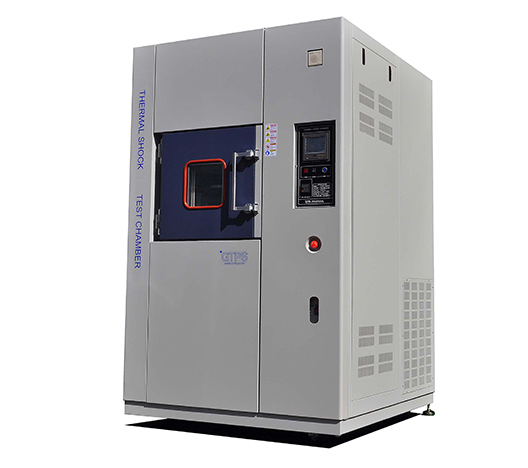

The ETSP-TS series from ETSP, South Korea, is a basket moving type thermal shock chamber designed for thermal shock testing of components or equipment, subjecting them to the rapid temperature changes defined in IEC 60068-3-5:2001, MIL-STD-810G and NATO STANAG 4370. It is suitable for quality control laboratories and production plants for the screening of components or equipment, and allows a wide range of tests to determine thermal characteristics.
The cold zone runs from -70 °C to -10 °C and the hot zone from ambient to 200 °C, with temperature accuracy of less than ±0.3 °C and stability of less than ±0.5 °C. The hot zone heats from room temperature to +200 °C within 15 minutes, the cold zone cools from room temperature to -70 °C within 45 minutes, and temperature recovery takes 5–15 minutes, depending on test conditions.
Basket movement uses a pneumatic cylinder and guide rail for a low level of vibration, and a double gasket reduces air mixing between the cold and hot chambers. Rapid cooling is quiet, with silent compressors and ecologically friendly refrigerants, and the refrigeration system is a mechanical cascade (dual) system. Standard or custom-designed models can be offered.
ETSP-TS series specifications
| Model | ETSP-TS series (basket moving type): ETSP-TS50, TS60, TS100, TS115, TS150, TS220 and TS300 |
|---|---|
| Manufacturer | ETSP, South Korea (ETSP Co., Ltd.) |
| Test | Thermal shock testing of components or equipment |
| Standards | IEC 60068-3-5:2001, MIL-STD-810G, NATO STANAG 4370 |
| Cold zone | -70 °C to -10 °C |
| Hot zone | Ambient to 200 °C |
| Temperature accuracy | Less than ±0.3 °C |
| Temperature stability | Less than ±0.5 °C (inside temperature fluctuation) |
| Hot zone pre-heating upper limit | +230 °C |
| Hot zone heat-up rate | Room temperature to +200 °C within 15 minutes |
| Cold zone pre-cool limit | -75 °C |
| Cold zone cool-down rate | Room temperature to -70 °C within 45 minutes |
| Temperature recovery time | Within 5–15 minutes, depending on test conditions |
| Thermal response | Fast, with continuous and linear control over the whole range |
| Basket movement | Pneumatic cylinder and guide rail, with a low level of vibration; double gasket reduces air mixing between the cold and hot chambers |
| Refrigeration system | Mechanical cascade (dual) refrigeration system; CFC-free refrigerant (R404A, R23) |
| Controller | LCD touch-screen programmable controller; up to 120 patterns and 1,200 segments; segment time up to 99 h 59 min; automatic defrost system; temperature set resolution 0.1 °C; automatic recording and graphs for temperature |
| Safety devices | Leakage breaker, circuit breaker, overheat protector, compressor high and low pressure switch, low oil pressure trip for compressor, phase monitoring relay (trips off in case of a phase failure), compressor built-in protector, electrical over current relay, motor reverse-prevention relay, emergency shut-off switch |
| Power supply | 3 phase 220 V/380 V, 50 Hz/60 Hz (changeable according to customer specification) |
| Included accessories | 2 shelves, three color tower light, RS232/485 networking with control software, temperature calibration certificate for controller, caster for moving, real time clock (auto start), end of cycle and high and low limit audible alarm, automatic defrost, hard copy and soft copy instruction and maintenance manual |
| Options | Port hole and rubber plug (50, 80 or 100 mm), door lock system, paperless digital chart recorder (6, 8, 12 or 18 channels), viewing window at each zone (heater wire included, reinforced window), additional stainless steel shelves, customization |
Models and dimensions
| Model | Test area dimensions (W × D × H) | Shelf dimensions (W × D × H) | External dimensions (W × D × H) |
|---|---|---|---|
| ETSP-TS50 | 300 × 300 × 300 mm | 280 × 255 × 20 mm | 1,210 × 1,995 × 2,002 mm |
| ETSP-TS60 | 380 × 410 × 380 mm | 320 × 365 × 20 mm | 1,290 × 2,175 × 2,250 mm |
| ETSP-TS100 | 400 × 400 × 400 mm | 380 × 355 × 20 mm | 1,310 × 2,165 × 2,290 mm |
| ETSP-TS115 | 450 × 640 × 400 mm | 430 × 615 × 20 mm | 1,360 × 2,645 × 2,290 mm |
| ETSP-TS150 | 500 × 500 × 500 mm | 480 × 455 × 20 mm | 1,400 × 2,470 × 2,440 mm |
| ETSP-TS220 | 750 × 650 × 450 mm | 730 × 605 × 20 mm | 1,650 × 2,650 × 2,340 mm |
| ETSP-TS300 | 580 × 580 × 470 mm | 560 × 535 × 20 mm | 1,480 × 2,550 × 2,380 mm |
Standard or custom-designed models can be offered.
Specifications are as published by the manufacturer, ETSP. Download the product brochure or contact us to confirm the configuration for your laboratory.
Thermal shock chamber: frequently asked questions
What does the ETSP-TS series thermal shock chamber test?
It is designed for thermal shock testing of components or equipment, subjecting them to rapid temperature changes as defined in IEC 60068-3-5:2001, MIL-STD-810G and NATO STANAG 4370. It is suitable for quality control laboratories and production plants for the screening of components or equipment.
What temperature ranges do the cold and hot zones cover?
The cold zone covers -70 °C to -10 °C and the hot zone runs from ambient to 200 °C. The hot zone can be pre-heated up to +230 °C and the cold zone pre-cooled to -75 °C.
How fast does it heat, cool and recover, and how accurate is it?
The hot zone heats from room temperature to +200 °C within 15 minutes and the cold zone cools from room temperature to -70 °C within 45 minutes. Temperature recovery takes 5–15 minutes, depending on test conditions. Accuracy is less than ±0.3 °C and stability less than ±0.5 °C, with continuous and linear control over the whole range.
How does the basket move between the zones?
The ETSP-TS series is a basket moving type. Basket movement uses a pneumatic cylinder and guide rail, which keeps vibration low, and a double gasket reduces air mixing between the cold and hot chambers.
Which models and sizes are available?
There are seven models: ETSP-TS50, TS60, TS100, TS115, TS150, TS220 and TS300, with test area dimensions from 300 × 300 × 300 mm (TS50) to 750 × 650 × 450 mm (TS220), W × D × H. Standard or custom-designed models can be offered. A brochure is available from the button at the top of this page.
Where can I buy the ETSP-TS series in India?
Multiflo Instruments, based in Navi Mumbai, supplies ETSP environmental test chambers in India. Our team can advise on the ETSP-TS series, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
