Key Features
- Interchangeable Indoor and Outdoor light filters slot directly into the chamber, letting the same unit reproduce different lighting environments for a test sample
- With the Outdoor filter fitted, the chamber's measured spectrum closely tracks the AM1.5G standard reference solar spectrum, the benchmark used for solar and light-exposure testing
- Irradiance uniformity independently verified across the test area: 771.73 – 844.84 W/m² measured over a 700 x 700mm zone, ±4.52% uniformity
- Front viewing window and hinged access door for observing samples during a run, with a digital touchscreen control panel

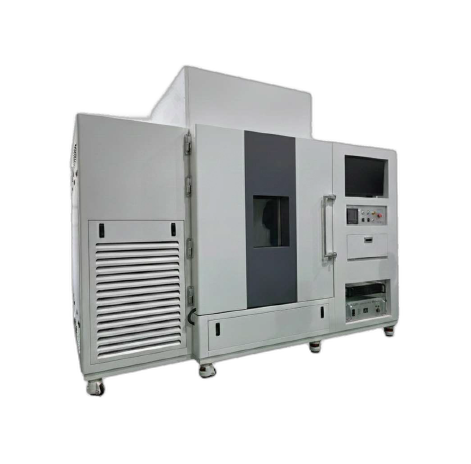

About the TS200 Solar Simulation Chamber
The TS200 solar simulation chamber from TNE Tech Co., Ltd., South Korea, lets one unit reproduce different lighting environments for a test sample. Interchangeable Indoor and Outdoor light filters slot directly into the chamber, and with the Outdoor filter fitted the chamber’s measured spectrum closely tracks the AM1.5G standard reference solar spectrum, the benchmark used for solar and light-exposure testing.
Irradiance uniformity is independently verified across the test area: 771.73–844.84 W/m² measured over a 700 × 700 mm zone, which is ±4.52% uniformity. A front viewing window and a hinged access door let you observe samples during a run, and the chamber is operated from a digital touchscreen control panel.
TS200 specifications
| Model | TS200 |
|---|---|
| Manufacturer | TNE Tech Co., Ltd., South Korea |
| Light filters | Interchangeable Indoor and Outdoor filters that slot directly into the chamber |
| Reference spectrum | With the Outdoor filter fitted, the measured spectrum closely tracks the AM1.5G standard solar spectrum |
| Irradiance (test area) | 771.73–844.84 W/m² measured over a 700 × 700 mm zone |
| Uniformity | ±4.52%, independently verified |
| Access | Front viewing window and hinged access door |
| Control | Digital touchscreen control panel |
Specifications are as published by the manufacturer, TNE Tech. Download the product brochure or contact us to confirm the configuration for your laboratory.
Solar simulation chamber: frequently asked questions
What does the TNE Tech TS200 solar simulation chamber do?
It reproduces different lighting environments for a test sample. Interchangeable Indoor and Outdoor light filters slot directly into the chamber, so the same unit can be used for different light conditions.
Does the TS200 match the AM1.5G solar spectrum?
With the Outdoor filter fitted, the chamber’s measured spectrum closely tracks the AM1.5G standard reference solar spectrum, the benchmark used for solar and light-exposure testing.
How uniform is the irradiance in the TS200?
Irradiance uniformity is independently verified across the test area: 771.73–844.84 W/m² measured over a 700 × 700 mm zone, which is ±4.52% uniformity.
Can I watch samples during a test, and how is the chamber controlled?
Yes. A front viewing window and a hinged access door let you observe samples during a run, and the chamber has a digital touchscreen control panel.
Where can I buy the TNE Tech TS200 in India?
Multiflo Instruments, based in Navi Mumbai, supplies TNE Tech chambers in India. Our team can advise on the TS200, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
