Key Features
- ETSP-SS series simulates the effects of salt and sea mist on your product. Tests are designed to evaluate corrosion properties and resistance to corrosion, and cover the requirements for continuous salt spray testing to ASTM B117 and similar international salt spray test standards
- Temperature: 35 °C ± 2 °C
- Spray volume: 1–2 ml/h, with a fine fog of 5–20 micron droplet size
- Models ETSP-SS 120, 480, 600 and 1000, with useful capacity from 121 to 1,000 litres
- Non-corrosive, temperature-controlled saturator with automatic water level controller and immersion heater
- Microprocessor controller with self-diagnostics and a warning message function

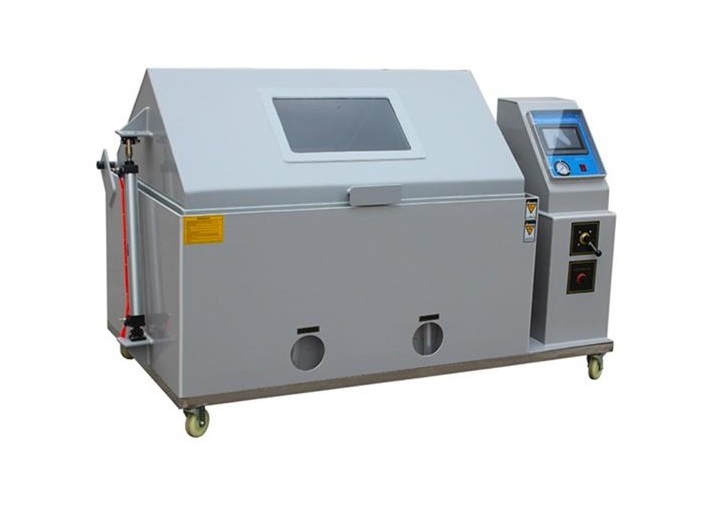

About the ETSP-SS Series Salt Spray Chamber
The ETSP-SS series salt spray chamber from ETSP, South Korea, simulates the effects of salt and sea mist on your product. Tests are designed to evaluate corrosion properties and resistance to corrosion, and cover the requirements for continuous salt spray testing to ASTM B117 and similar international salt spray test standards.
The chamber runs at 35 °C ± 2 °C with a spray volume of 1–2 ml/h. The atomizer produces a fine fog of 5–20 micron droplet size, and a non-corrosive, temperature-controlled saturator has an automatic water level controller and an immersion heater. A microprocessor controller includes self-diagnostics and a warning message function.
Four models, ETSP-SS 120, 480, 600 and 1000, offer useful capacity from 121 to 1,000 litres, and custom-designed chambers are available on demand. The ETSP-SS series is manufactured according to Total Quality procedures, in compliance with the ISO 9001 standard.
ETSP-SS series specifications
| Model | ETSP-SS series: ETSP-SS 120, ETSP-SS 480, ETSP-SS 600 and ETSP-SS 1000 |
|---|---|
| Manufacturer | ETSP, South Korea (ETSP Co., Ltd.) |
| Purpose | Simulates the effects of salt and sea mist; evaluates corrosion properties and resistance to corrosion |
| Standards | Covers the requirements for continuous salt spray testing to ASTM B117 and similar international salt spray test standards |
| Temperature | 35 °C ± 2 °C |
| Spray volume | 1–2 ml/h |
| Atomizer | Fine fog of 5–20 micron droplet size |
| Filter/regulator | Filter cum air regulator, with pressure from 0–30 PSI |
| Saturator | Non-corrosive, temperature-controlled saturator with automatic water level controller and immersion heater |
| Controller | Microprocessor controller with self-diagnostics and warning message function; LED controller for chamber, saturator and timer, temperature set resolution 0.1 °C |
| Safety devices | Leakage breaker, circuit breaker, overheat protector, emergency shut-off switch |
| Power supply | 230 V ± 10%, 50 Hz/60 Hz, single phase (changeable according to customer specification) |
| Included accessories | V-glass (2 nos.) and V-glass holders (2 nos.), measuring cylinder (1 no.), salimeter (2 nos.), ionic water generator (1 no.), automatic drain system, support bars and racks, salt solution circulation system, automatic humidifier water level system, demisting system, hard copy and soft copy instruction and maintenance manual |
| Options | Paperless digital chart recorder (6, 8, 12 or 18 channels), additional nozzle, customization |
Models and dimensions
| Model | Internal dimensions (W × D × H) | External dimensions (W × D × H) | Useful capacity |
|---|---|---|---|
| ETSP-SS 120 | 600 × 450 × 450 mm | 1,300 × 680 × 1,080 mm | 121 litres |
| ETSP-SS 480 | 1,000 × 800 × 600 mm | 2,100 × 1,300 × 1,300 mm | 480 litres |
| ETSP-SS 600 | 1,500 × 800 × 500 mm | 2,600 × 1,300 × 1,200 mm | 600 litres |
| ETSP-SS 1000 | 2,000 × 1,000 × 500 mm | 3,100 × 1,500 × 1,200 mm | 1,000 litres |
Custom-designed chambers are available on demand.
Specifications are as published by the manufacturer, ETSP. Download the product brochure or contact us to confirm the configuration for your laboratory.
Salt spray chamber: frequently asked questions
What does the ETSP-SS salt spray chamber test?
It simulates the effects of salt and sea mist on your product, and evaluates corrosion properties and resistance to corrosion.
Which test standards does the ETSP-SS cover?
The ETSP-SS series covers the requirements for continuous salt spray testing to ASTM B117 and similar international salt spray test standards.
What models and capacities are available?
There are four models: ETSP-SS 120 (121 litres), ETSP-SS 480 (480 litres), ETSP-SS 600 (600 litres) and ETSP-SS 1000 (1,000 litres). Custom-designed chambers are available on demand.
What temperature and spray volume does the ETSP-SS offer?
The temperature is 35 °C ± 2 °C and the spray volume is 1–2 ml/h. The atomizer produces a fine fog of 5–20 micron droplet size, and a filter cum air regulator works with a pressure of 0–30 PSI. A brochure is available from the button at the top of this page.
What accessories and options does the ETSP-SS include?
Included are V-glass and holders, a measuring cylinder, salimeters, an ionic water generator, an automatic drain system, support bars and racks, a salt solution circulation system, an automatic humidifier water level system, a demisting system and an instruction and maintenance manual. Options are a paperless digital chart recorder (6, 8, 12 or 18 channels) and an additional nozzle.
Where can I buy the ETSP-SS salt spray chamber in India?
Multiflo Instruments, based in Navi Mumbai, supplies ETSP salt spray chambers in India. Our team can advise on the ETSP-SS salt spray chamber, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
