Key Features
- Non-contact IR detection of the glow wire temperature
- Automatic test sequence after pressing the start button
- Sled movement via motorized linear drive with defined speed
- Compact two-wire infrared thermometer with high temperature resolution
- Standards: DIN EN IEC 60695-2-10 (VDE 0471-2-10):2023-10 / COR1:2024-07; IEC 60695-2-10:2021/COR1:2024
About the Karg GDP.2 (Mk II) Glow Wire Tester

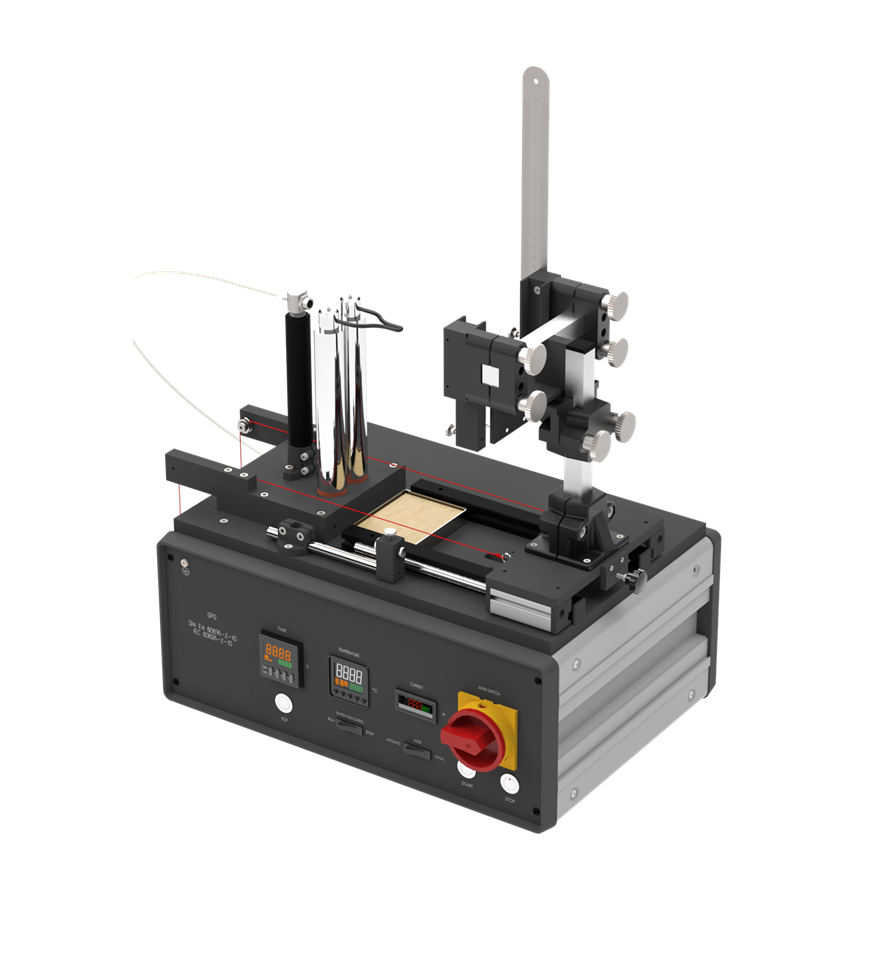

The GDP.2 (Mk II) from Karg, Germany, is a glow wire tester that detects the glow wire temperature without contact, by infrared (IR). A compact two-wire infrared thermometer gives high temperature resolution.
After the start button is pressed the test sequence runs automatically, and the sled moves through a motorized linear drive at a defined speed. The tester follows DIN EN IEC 60695-2-10 (VDE 0471-2-10):2023-10 / COR1:2024-07 and IEC 60695-2-10:2021/COR1:2024.
GDP.2 (Mk II) specifications
| Model | GDP.2 (Mk II) |
|---|---|
| Manufacturer | Karg, Germany |
| Test | Glow wire test |
| Standards | DIN EN IEC 60695-2-10 (VDE 0471-2-10):2023-10 / COR1:2024-07; IEC 60695-2-10:2021/COR1:2024 |
| Temperature detection | Non-contact infrared (IR) detection of the glow wire temperature |
| Thermometer | Compact two-wire infrared thermometer with high temperature resolution |
| Test sequence | Automatic after pressing the start button |
| Sled movement | Motorized linear drive with defined speed |
Specifications are as published by the manufacturer, Karg. Download the product brochure or contact us to confirm the configuration for your laboratory.
Glow wire tester: frequently asked questions
Which standards does the Karg GDP.2 (Mk II) follow?
DIN EN IEC 60695-2-10 (VDE 0471-2-10):2023-10 / COR1:2024-07 and IEC 60695-2-10:2021/COR1:2024.
How is the glow wire temperature measured?
By non-contact infrared detection, using a compact two-wire infrared thermometer with high temperature resolution.
Is the test sequence automatic?
Yes. The test sequence runs automatically after the start button is pressed.
How does the sled move?
Through a motorized linear drive at a defined speed.
Where can I buy the Karg GDP.2 (Mk II) in India?
Multiflo Instruments, based in Navi Mumbai, supplies Karg instruments in India. Our team can advise on the GDP.2 (Mk II), send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
