Key Features
- ETSP-TH series are climatic (temperature & humidity control) chambers for testing the durability or operating status of parts and products in extreme conditions, as defined in IEC 60068-3-5:2001, IEC 60068-3-6:2001, MIL-STD-810G and NATO STANAG 4370
- Temperature range: -40 °C to +150 °C (single-stage refrigeration) or -70 °C to +150 °C (cascade refrigeration)
- Temperature accuracy: less than ±0.3 °C; stability: less than ±0.5 °C; uniformity: less than ±2.0 °C
- Humidity range: 10% to 95% RH; stability: less than ±1.5% RH; uniformity: less than ±3% RH
- Eight models, ETSP-TH 150 to 1800, with useful capacity from 150 to 1,800 litres
- Programmable 5.7-inch TFT color touch-screen controller with up to 120 patterns and 1,200 profiles; RS232/485 networking with free control software

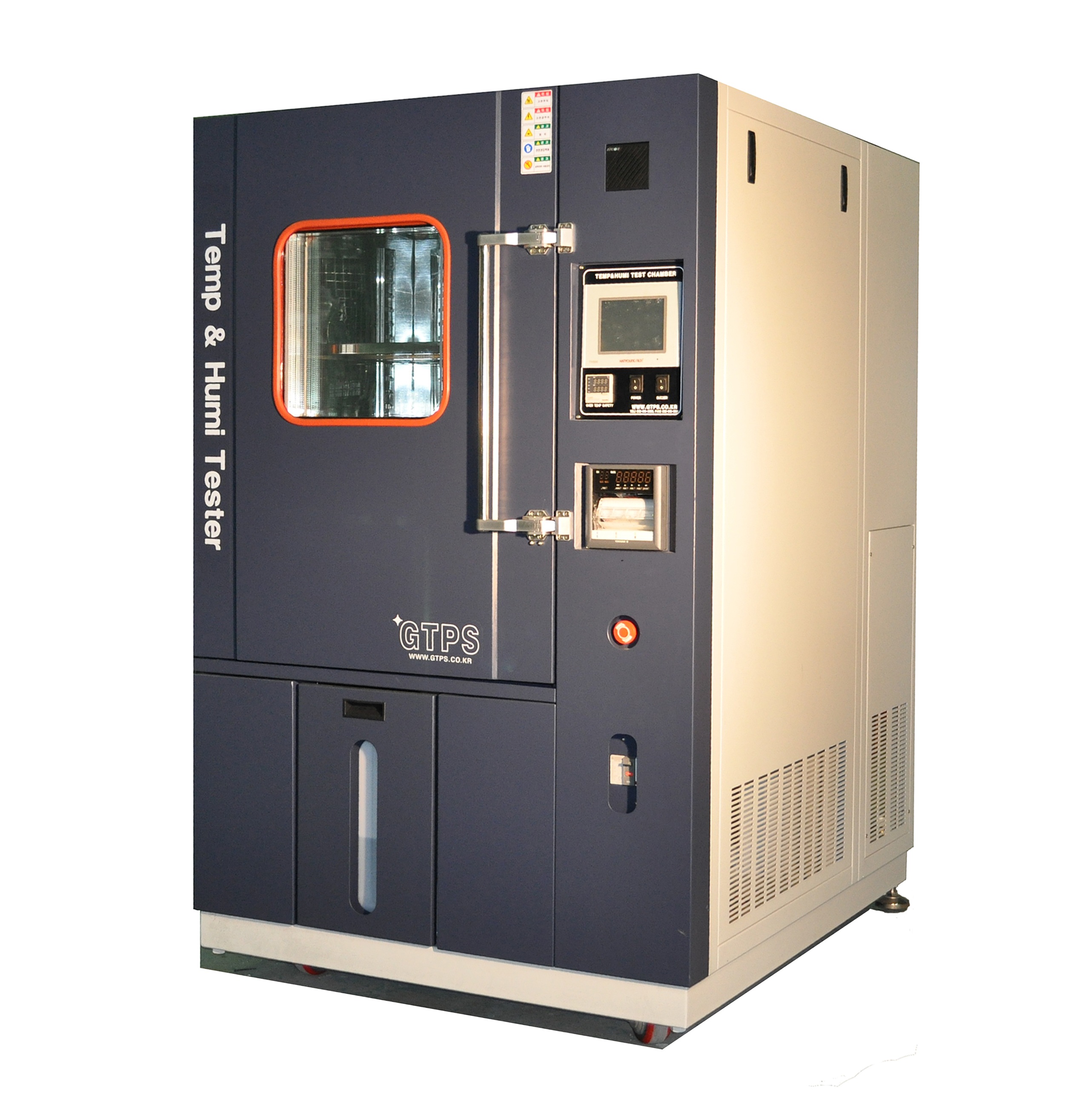

About the ETSP-TH Series Environmental Chamber
The ETSP-TH series from ETSP, South Korea, are climatic chambers with temperature and humidity control, for testing the durability or operating status of parts and products in extreme conditions as defined in IEC 60068-3-5:2001, IEC 60068-3-6:2001, MIL-STD-810G and NATO STANAG 4370. The series addresses noise, poor humidity control and condensation, slow temperature and humidity variations, and unbalanced air distribution inside the chamber.
The temperature range is -40 °C to +150 °C with a single-stage refrigeration system, or -70 °C to +150 °C with a cascade refrigeration system, with accuracy of less than ±0.3 °C. The humidity range is 10% to 95% RH with stability of less than ±1.5% RH, and automatic, precise water level control maintains accurate control of relative humidity and temperature.
Eight models, ETSP-TH 150 to ETSP-TH 1800, offer useful capacity from 150 to 1,800 litres, and custom-designed chambers are available on demand. The ETSP-TH series is manufactured according to Total Quality procedures, in compliance with the ISO 9001 standard.
ETSP-TH series specifications
| Model | ETSP-TH series: ETSP-TH 150, 216, 343, 392, 512, 800, 1000 and 1800 |
|---|---|
| Manufacturer | ETSP, South Korea (ETSP Co., Ltd.) |
| Type | Climatic chamber with temperature and humidity control |
| Standards | IEC 60068-3-5:2001, IEC 60068-3-6:2001, MIL-STD-810G, NATO STANAG 4370 |
| Temperature range | -40 °C to +150 °C (single-stage refrigeration system); -70 °C to +150 °C (cascade refrigeration system); changeable on customer request |
| Temperature accuracy | Less than ±0.3 °C |
| Temperature stability (fluctuation) | Less than ±0.5 °C |
| Temperature uniformity | Less than ±2.0 °C |
| Humidity range | 10% to 95% RH |
| Humidity stability | Less than ±1.5% RH |
| Humidity uniformity | Less than ±3% RH |
| Dew point temperature range | 5 °C to 85 °C |
| Heating-up rate | 2.5 °C/min on average with no load, measured in the air inlet |
| Cooling-down rate | 1.0 °C/min on average with no load, measured in the air inlet |
| Controller | Programmable TFT color 5.7-inch touch-screen LCD controller; up to 120 patterns and 1,200 profiles; set resolution 0.01 °C and 0.1% RH; automatic recording and graphs for temperature and humidity |
| Refrigerant | CFC-free (R404A, R23) |
| Safety devices | Electrical leakage breaker, circuit breaker, overheat protector, refrigerator high and low pressure switch, water low level switch, compressor built-in protector, pressure relief port, electrical over current relay, emergency shut-off switch, motor reverse-prevention relay |
| Power supply | 3 phase 380 V, 50 Hz/60 Hz (changeable according to customer specification) |
| Included accessories | 2 shelves, caster for moving, viewing window (including heater wire, reinforced) and interior light, RS232/485 networking with control software, cable port and rubber plug (50, 80 or 100 mm), cartridge type water reservoir with connector, hard copy and soft copy instruction and maintenance manual |
| Options | Door lock system, low humidity control at low temperature, paperless digital chart recorder (6, 8, 12 or 18 channels), USB memory stick (inner 32 MB memory), additional port hole and rubber plug (50, 80 or 100 mm), additional stainless steel shelves, customization |
Models and dimensions
| Model | Internal dimensions (W × D × H) | External dimensions (W × D × H) | Useful capacity |
|---|---|---|---|
| ETSP-TH 150 | 500 × 500 × 600 mm | 1,190 × 1,090 × 1,764 mm | 150 litres |
| ETSP-TH 216 | 600 × 600 × 600 mm | 1,290 × 1,190 × 1,764 mm | 216 litres |
| ETSP-TH 343 | 700 × 700 × 700 mm | 1,390 × 1,290 × 1,860 mm | 343 litres |
| ETSP-TH 392 | 700 × 700 × 800 mm | 1,390 × 1,290 × 1,960 mm | 392 litres |
| ETSP-TH 512 | 800 × 800 × 800 mm | 1,490 × 1,390 × 1,960 mm | 512 litres |
| ETSP-TH 800 | 930 × 930 × 930 mm | 1,620 × 1,530 × 2,070 mm | 800 litres |
| ETSP-TH 1000 | 1,000 × 1,000 × 1,000 mm | 1,690 × 1,590 × 2,100 mm | 1,000 litres |
| ETSP-TH 1800 | 1,200 × 1,200 × 1,250 mm | 1,900 × 1,800 × 1,850 mm | 1,800 litres |
Custom-designed chambers are available on demand.
Specifications are as published by the manufacturer, ETSP. Download the product brochure or contact us to confirm the configuration for your laboratory.
Environmental chamber: frequently asked questions
What temperature range does the ETSP-TH series cover?
The temperature range is -40 °C to +150 °C with a single-stage refrigeration system, or -70 °C to +150 °C with a cascade refrigeration system, and can be changed on customer request. Accuracy is less than ±0.3 °C, stability less than ±0.5 °C and uniformity less than ±2.0 °C. Heating-up averages 2.5 °C/min and cooling-down 1.0 °C/min with no load, measured in the air inlet.
What humidity range and stability can the ETSP-TH series achieve?
The humidity range is 10% to 95% RH, with stability of less than ±1.5% RH and uniformity of less than ±3% RH. The dew point temperature range is 5 °C to 85 °C, and 10% RH at 10 °C is available as an option.
Which standards and tests is the ETSP-TH series built for?
It is a climatic chamber for testing the durability or operating status of parts and products in extreme conditions as defined in IEC 60068-3-5:2001, IEC 60068-3-6:2001, MIL-STD-810G and NATO STANAG 4370.
Which models and capacities are available?
There are eight models: ETSP-TH 150, 216, 343, 392, 512, 800, 1000 and 1800, with useful capacity from 150 to 1,800 litres. Custom-designed chambers are available on demand.
How is the ETSP-TH chamber controlled and networked?
A programmable TFT color 5.7-inch touch-screen LCD controller holds up to 120 patterns and 1,200 profiles, with set resolution of 0.01 °C and 0.1% RH and automatic recording and graphs for temperature and humidity. RS232/485 networking comes with free control software, and several chambers can be connected to a single master control unit for centralized supervision, locally or remotely. A brochure is available from the button at the top of this page.
Where can I buy the ETSP-TH series in India?
Multiflo Instruments, based in Navi Mumbai, supplies ETSP environmental test chambers in India. Our team can advise on the ETSP-TH series, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
