Key Features
- Measures all coatings on metallic substrates using the magnetic induction or eddy-current principles
- Compliant to ISO 2808, ISO 19840, ISO 2360, ISO 1461, ISO 2063, ASTM D7091, ASTM E376 and ASTM G12
- Measurement accuracy ±1 to 3%
- Ferrous probes measure all non-ferromagnetic coatings on steel and iron; non-ferrous probes measure all non-conductive, non-ferromagnetic coatings on conductive non-ferrous substrates

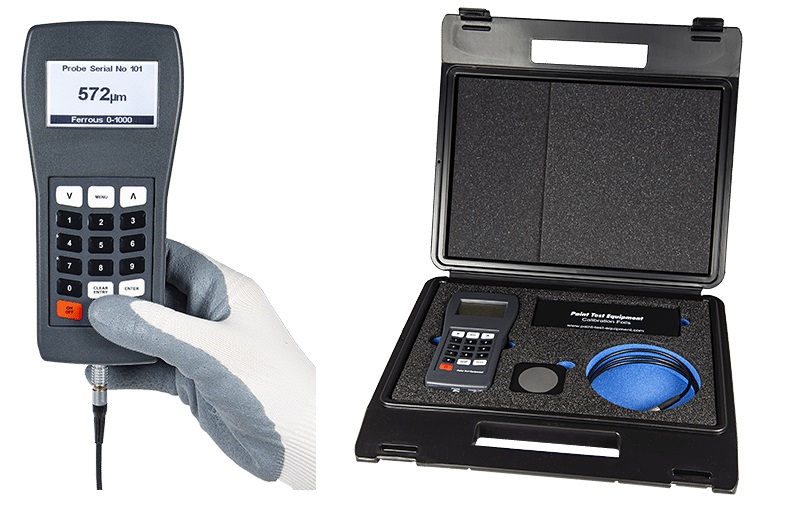

About the Paint Test Equipment C5001 Coating Thickness Meter
The C5001 coating thickness meter from Paint Test Equipment, UK, measures all coatings on metallic substrates using the magnetic induction or eddy-current principles. Measurement accuracy is ±1 to 3%.
The meter is compliant to ISO 2808, ISO 19840, ISO 2360, ISO 1461, ISO 2063, ASTM D7091, ASTM E376 and ASTM G12. The probe type follows the substrate: ferrous probes for steel and iron, and non-ferrous probes for conductive non-ferrous substrates.
C5001 specifications
| Model | C5001 |
|---|---|
| Manufacturer | Paint Test Equipment, UK |
| Principle | Magnetic induction or eddy-current |
| Coatings measured | All coatings on metallic substrates |
| Ferrous probes | All non-ferromagnetic coatings on steel and iron |
| Non-ferrous probes | All non-conductive, non-ferromagnetic coatings on conductive non-ferrous substrates |
| Measurement accuracy | ±1 to 3% |
| Standards | ISO 2808, ISO 19840, ISO 2360, ISO 1461, ISO 2063, ASTM D7091, ASTM E376, ASTM G12 |
Specifications are as published by the manufacturer, Paint Test Equipment. Download the product brochure or contact us to confirm the configuration for your laboratory.
Coating thickness meter: frequently asked questions
How does the C5001 coating thickness meter work?
It measures all coatings on metallic substrates using the magnetic induction or eddy-current principles.
Which probes does the C5001 use, and what do they measure?
Ferrous probes measure all non-ferromagnetic coatings on steel and iron. Non-ferrous probes measure all non-conductive, non-ferromagnetic coatings on conductive non-ferrous substrates.
How accurate is the C5001?
Measurement accuracy is ±1 to 3%.
Which standards does the C5001 comply with?
ISO 2808, ISO 19840, ISO 2360, ISO 1461, ISO 2063, ASTM D7091, ASTM E376 and ASTM G12. A brochure is available from the button at the top of this page.
Where can I buy the Paint Test Equipment C5001 in India?
Multiflo Instruments, based in Navi Mumbai, supplies Paint Test Equipment instruments in India. Our team can advise on the C5001, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
