Key Features
- ETSP-VTH series are temperature and humidity test chambers in combination with vibration, which simulate dynamic processes and allow optimum integration of various vibration systems
- Applied tests: high temperature, low temperature, high-low temperature, temperature and humidity, high-low temperature and humidity, environment stress screening, reliability evaluation and acceptance tests
- Temperature range: -40 °C to +150 °C (single-stage refrigeration) or -70 °C to +150 °C (cascade refrigeration); accuracy less than ±0.3 °C
- Heating-up and cooling-down rates of 5–15 °C/min on average with no load, measured in the air inlet
- Seven models, ETSP-VTH 392 to 1800, with useful capacity from 392 to 1,800 litres
- Programmable 5.7-inch TFT color touch-screen controller with up to 120 patterns and 1,200 profiles; RS232/485 networking with free control software
- Several chambers can be connected to a single master control unit for centralized supervision, in local and remote mode

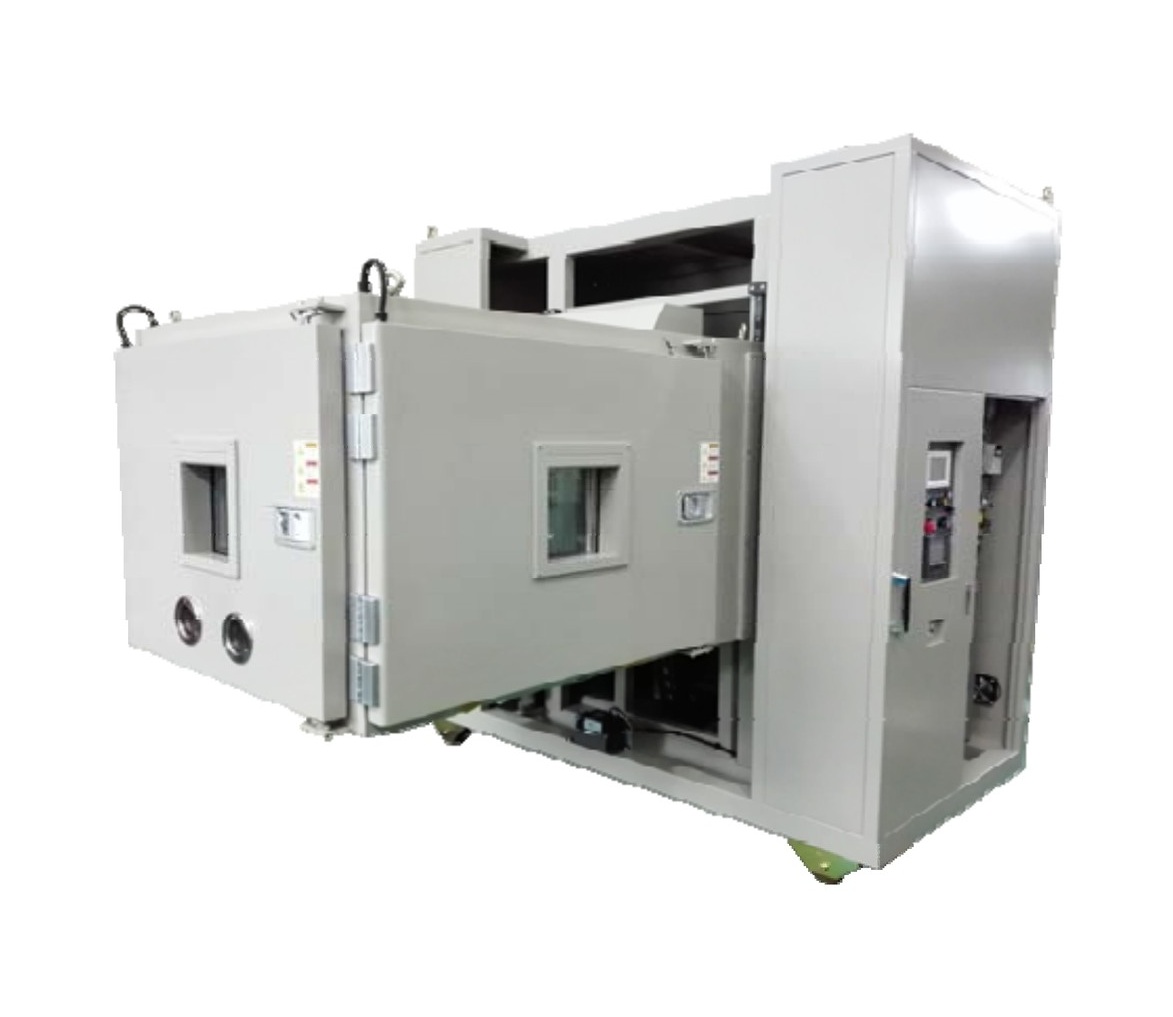

About the ETSP-VTH Series Complex Vibration Chamber
The ETSP-VTH series from ETSP, South Korea, are temperature and humidity test chambers in combination with vibration. They simulate dynamic processes and allow optimum integration of various vibration systems. Applied tests are high temperature, low temperature, high-low temperature, temperature and humidity, high-low temperature and humidity, environment stress screening, reliability evaluation and acceptance tests.
The temperature range is -40 °C to +150 °C with a single-stage refrigeration system, or -70 °C to +150 °C with a cascade refrigeration system, with accuracy of less than ±0.3 °C and heating-up and cooling-down rates of 5–15 °C/min on average with no load, measured in the air inlet. A programmable TFT color 5.7-inch touch-screen LCD controller holds up to 120 patterns and 1,200 profiles, and RS232/485 networking with free control software lets several chambers be connected to a single master control unit for centralized supervision, in local and remote mode.
The chamber has a powerful chamber up/down unit and an electrical unit designed for high reliability and operator safety, with an error diagnosis system and an inspection system for easy servicing and upgrades, and it cools rapidly at a low noise level with ecologically friendly refrigerants. Seven models, ETSP-VTH 392 to ETSP-VTH 1800, offer useful capacity from 392 to 1,800 litres, and custom-designed chambers are available on demand. The ETSP-VTH series is manufactured according to Total Quality procedures, in compliance with the ISO 9001 standard.
ETSP-VTH series specifications
| Model | ETSP-VTH series: ETSP-VTH 392, 512, 729, 800, 1000, 1200 and 1800 |
|---|---|
| Manufacturer | ETSP, South Korea (ETSP Co., Ltd.) |
| Type | Temperature and humidity test chamber in combination with vibration (complex vibration chamber) |
| Applied tests | High temperature, low temperature, high-low temperature, temperature and humidity, high-low temperature and humidity, environment stress screening, reliability evaluation and acceptance tests |
| Temperature range | -40 °C to +150 °C (single-stage refrigeration system); -70 °C to +150 °C (cascade refrigeration system); changeable on customer request |
| Temperature accuracy | Less than ±0.3 °C |
| Temperature stability (fluctuation) | Less than ±0.5 °C |
| Temperature uniformity | Less than ±2.0 °C |
| Heating-up rate | 5–15 °C/min on average with no load, measured in the air inlet |
| Cooling-down rate | 5–15 °C/min on average with no load, measured in the air inlet |
| Controller | Programmable TFT color 5.7-inch touch-screen LCD controller; up to 120 patterns and 1,200 profiles; set resolution 0.01 °C; automatic recording and graphs for temperature |
| Networking | RS232/485 networking with free control software; several chambers can be connected to a single master control unit for centralized supervision, in local and remote mode |
| Refrigerant | CFC-free (R404A, R23) |
| Safety devices | Electrical leakage breaker, circuit breaker, overheat protector, refrigerator high and low pressure switch, compressor built-in protector, electrical over current relay, emergency shut-off switch, motor reverse-prevention relay |
| Power supply | 3 phase 380 V, 50 Hz/60 Hz (changeable according to customer specification) |
| Included accessories | 2 shelves, moving rail, viewing window (including heater wire, reinforced) and interior light, RS232/485 networking with control software, cable port and rubber plug (50, 80 or 100 mm), hard copy and soft copy instruction and maintenance manual, 3 color tower light, electronic humidity sensor |
| Options | Selectable moving type (horizontal, vertical, or horizontal and vertical), paperless digital chart recorder (6, 8, 12 or 18 channels), additional port hole and rubber plug (50, 80 or 100 mm), additional stainless steel shelves |
Models and dimensions
| Model | Internal dimensions (W × D × H) | External dimensions (W × D × H) | Useful capacity |
|---|---|---|---|
| ETSP-VTH 392 | 700 × 700 × 800 mm | 1,660 × 2,770 × 2,110 mm | 392 litres |
| ETSP-VTH 512 | 800 × 800 × 800 mm | 1,760 × 2,870 × 2,210 mm | 512 litres |
| ETSP-VTH 729 | 900 × 900 × 900 mm | 1,860 × 2,970 × 2,310 mm | 729 litres |
| ETSP-VTH 800 | 930 × 930 × 930 mm | 1,890 × 2,900 × 2,340 mm | 800 litres |
| ETSP-VTH 1000 | 1,000 × 1,000 × 1,000 mm | 1,960 × 2,990 × 2,410 mm | 1,000 litres |
| ETSP-VTH 1200 | 1,000 × 1,200 × 1,000 mm | 1,960 × 3,190 × 2,410 mm | 1,200 litres |
| ETSP-VTH 1800 | 1,200 × 1,200 × 1,250 mm | 2,160 × 3,190 × 2,660 mm | 1,800 litres |
Custom-designed chambers are available on demand.
Specifications are as published by the manufacturer, ETSP. Download the product brochure or contact us to confirm the configuration for your laboratory.
Complex vibration chamber: frequently asked questions
What is the ETSP-VTH complex vibration chamber?
The ETSP-VTH series are temperature and humidity test chambers in combination with vibration. They simulate dynamic processes and allow optimum integration of various vibration systems. Applied tests are high temperature, low temperature, high-low temperature, temperature and humidity, high-low temperature and humidity, environment stress screening, reliability evaluation and acceptance tests.
What temperature range and rates does the ETSP-VTH offer?
The temperature range is -40 °C to +150 °C with a single-stage refrigeration system, or -70 °C to +150 °C with a cascade refrigeration system, and can be changed on customer request. Accuracy is less than ±0.3 °C, stability less than ±0.5 °C and uniformity less than ±2.0 °C. Heating-up and cooling-down rates are 5–15 °C/min on average with no load, measured in the air inlet.
Which models and capacities are available?
There are seven models: ETSP-VTH 392, 512, 729, 800, 1000, 1200 and 1800, with useful capacity of 392, 512, 729, 800, 1,000, 1,200 and 1,800 litres. Custom-designed chambers are available on demand.
How is the ETSP-VTH controlled and networked?
A programmable TFT color 5.7-inch touch-screen LCD controller holds up to 120 patterns and 1,200 profiles, with a set resolution of 0.01 °C and automatic recording and graphs for temperature. RS232/485 networking comes with free control software, and several chambers can be connected to a single master control unit for centralized supervision, in local and remote mode.
What accessories and options does the ETSP-VTH include?
Included are 2 shelves, a moving rail, a reinforced viewing window with heater wire and an interior light, a cable port and rubber plug (50, 80 or 100 mm), a 3 color tower light, an electronic humidity sensor and an instruction and maintenance manual. Options are a selectable moving type (horizontal, vertical, or horizontal and vertical), a paperless digital chart recorder (6, 8, 12 or 18 channels), additional port holes and rubber plugs, and additional stainless steel shelves. A brochure is available from the button at the top of this page.
Where can I buy the ETSP-VTH complex vibration chamber in India?
Multiflo Instruments, based in Navi Mumbai, supplies ETSP environmental test chambers in India. Our team can advise on the ETSP-VTH complex vibration chamber, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
