Key Features
- Evaluates combustion characteristics of building and ship-lining materials per ISO 5658-2 (lateral spread of flame, vertical configuration), IMO FTP Code Resolution A.653(16) and ASTM E1317 for marine surface finishes
- Tests a vertical 155 × 800mm specimen under a radiant heat field, recording flame spread rate plus ignition and extinguishment time at each distance along the panel
- Reports Heat for Ignition, Heat for Sustained Burning, Critical Flux at Extinguishment, Average Heat for Sustained Burning, and Total/Peak Heat Release Rate
- Explosion-proof control systems throughout, with a check-valve and gas shut-off solenoid on the radiant panel to block back-flow, and a Flame Relay System that cuts gas supply on any ignition failure
- 19″ analysis rack with DAQ software handles calibration, image-based flame-spread tracking and standards-compliant report printouts (IMO, ISO)
About the Spread of Flame Tester (IMO)

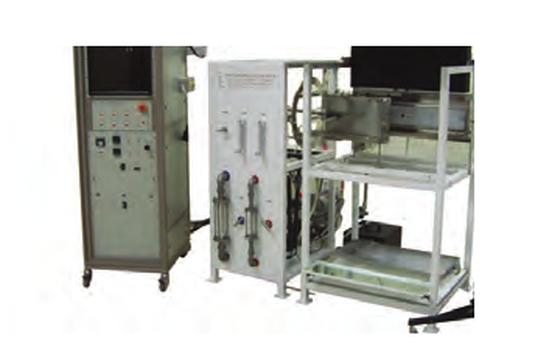

The Spread of Flame Tester (IMO), model FT-IMO-609 from FT Solutions Co., Ltd. (FESTEC), South Korea, evaluates the combustion behaviour of building and ship-lining materials. A vertical 155 × 800 mm specimen is exposed to a radiant heat field, and flame spread, ignition and extinguishment times are recorded at each distance along the panel to ISO 5658-2, IMO FTP Code Resolution A.653(16) and ASTM E1317 for marine surface finishes.
Results include Heat for Ignition, Heat for Sustained Burning, Critical Flux at Extinguishment, Average Heat for Sustained Burning and Total and Peak Heat Release Rate. Explosion-proof control systems, a check valve and gas shut-off solenoid on the radiant panel, and a Flame Relay System that cuts the gas supply if ignition fails protect the operator. A 19-inch analysis rack with DAQ software handles calibration, image-based flame-spread tracking and standards-compliant report printouts for IMO and ISO.
Spread of Flame Tester (IMO) specifications
| Model | FT-IMO-609 |
|---|---|
| Manufacturer | FT Solutions Co., Ltd. (FESTEC), South Korea |
| Specimen | Vertical, 155 × 800 mm |
| Size (mm) | 1,710 × 1,100 × 1,985 (control rack 600 × 750 × 1,600) |
| Power | AC 220 V, 50/60 Hz, 30 A |
| Weight | 200 kg |
| Utilities | Methane gas, acetylene, compressed air, camcorder, hood, duct and dust collector |
Specifications are as published by the manufacturer, FT Solutions Co., Ltd. (FESTEC). Download the product brochure or contact us to confirm the configuration for your laboratory.
Spread of Flame Tester (IMO): frequently asked questions
Which standards does the FT-IMO-609 spread of flame tester meet?
ISO 5658-2 (lateral spread of flame, vertical configuration), IMO FTP Code Resolution A.653(16) and ASTM E1317 for marine surface finishes.
What specimen does it test and what does it report?
A vertical specimen of 155 × 800 mm is exposed to a radiant heat field. The system records flame spread plus ignition and extinguishment time at each distance along the panel, and reports Heat for Ignition, Heat for Sustained Burning, Critical Flux at Extinguishment, Average Heat for Sustained Burning and Total and Peak Heat Release Rate.
What safety features does the tester have?
Explosion-proof control systems throughout, a check valve and gas shut-off solenoid on the radiant panel to block back-flow in the gas line, and a Flame Relay System that cuts the gas supply on any ignition failure.
What are the installation requirements for the FT-IMO-609?
The tester measures 1,710 × 1,100 × 1,985 mm, with a 600 × 750 × 1,600 mm control rack, and weighs 200 kg. It needs an AC 220 V, 50/60 Hz, 30 A supply, methane gas, acetylene, compressed air, and hood, duct and dust-collector extraction.
Where can I buy the Spread of Flame Tester (IMO) (FT-IMO-609) in India?
Multiflo Instruments, based in Navi Mumbai, supplies FT Solutions (FESTEC) test equipment across India. Our team can advise on the FT-IMO-609, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
