Key Features
- Plating thickness measurement: General, Rh, Pd, Au, Ag, Sn, Ni
- Film thickness measurement of multilayer thin films (up to 5 layers)
- Energy Resolution of SDD: 125eV FWHM at Mn Kα
- Optional: Energy Resolution of Fast SDD: 120eV FWHM at Mn Kα
- Multi collimator (options: 0.05, 0.1, 0.2, 0.3, 1mm)
- Auto stage mode
- Optional RoHS screening

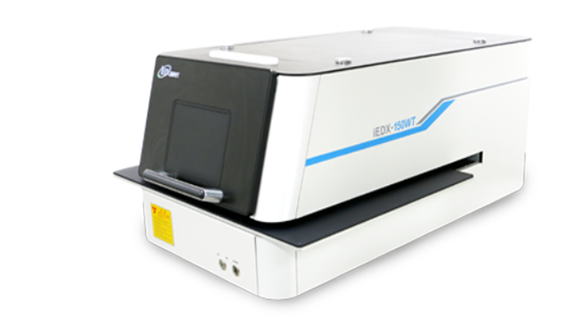

About the ISP iEDX 150WT Plating Thickness Analyzer
The iEDX 150WT from ISP Co. Ltd., South Korea, is an EDXRF plating thickness analyzer. It measures plating thickness for General, Rh, Pd, Au, Ag, Sn and Ni, and the film thickness of multilayer thin films with up to 5 layers.
The SDD has an energy resolution of 125 eV FWHM at Mn Kα, and a Fast SDD with 120 eV FWHM at Mn Kα is optional. A multi collimator is available (options 0.05, 0.1, 0.2, 0.3 and 1 mm), and an auto stage mode is included. RoHS screening is optional.
iEDX 150WT specifications
| Model | iEDX 150WT |
|---|---|
| Manufacturer | ISP Co. Ltd., South Korea |
| Technique | EDXRF plating thickness measurement |
| Plating thickness | General, Rh, Pd, Au, Ag, Sn, Ni |
| Multilayer thin films | Film thickness measurement of up to 5 layers |
| Energy resolution of SDD | 125 eV FWHM at Mn Kα |
| Optional Fast SDD | Energy resolution of 120 eV FWHM at Mn Kα |
| Collimator | Multi collimator; options 0.05, 0.1, 0.2, 0.3, 1 mm |
| Stage | Auto stage mode |
| Option | RoHS screening |
Specifications are as published by the manufacturer, ISP. Download the product brochure or contact us to confirm the configuration for your laboratory.
EDXRF plating thickness analyzer: frequently asked questions
Which platings can the ISP iEDX 150WT measure?
Plating thickness measurement covers General, Rh, Pd, Au, Ag, Sn and Ni.
Can it measure multilayer coatings?
Yes. It measures the film thickness of multilayer thin films with up to 5 layers.
What energy resolution does the iEDX 150WT offer?
The SDD energy resolution is 125 eV FWHM at Mn Kα. A Fast SDD with an energy resolution of 120 eV FWHM at Mn Kα is optional.
What collimator options and stage mode are available?
The multi collimator has options of 0.05, 0.1, 0.2, 0.3 and 1 mm, and the instrument has an auto stage mode. RoHS screening is optional. A brochure and product video are available from the buttons at the top of this page.
Where can I buy the ISP iEDX 150WT in India?
Multiflo Instruments, based in Navi Mumbai, supplies ISP XRF analyzers in India. Our team can advise on the iEDX 150WT, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
