Key Features
- Measurement range: 12µm to 16mm
- Accuracy ±0.1µm
- Patented non-contact interferometric thickness measurement technology
- Single and multi-layer measurements up to 49 layers
- Multi-probe configuration available and continuous internal calibration
- Applications: medical, glass, ophthalmic, industrial

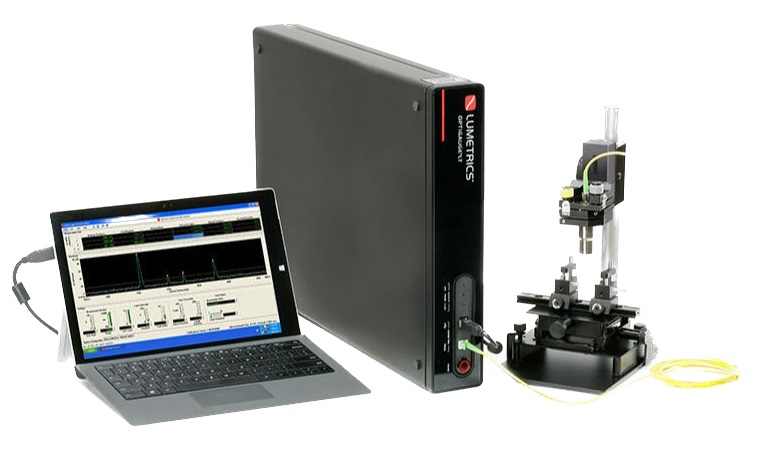

About the Lumetrics OptiGauge II
The OptiGauge II from Lumetrics, USA, uses patented non-contact interferometric thickness measurement technology. It measures from 12µm to 16mm with an accuracy of ±0.1µm.
It handles single and multi-layer measurements of up to 49 layers. A multi-probe configuration is available, and the gauge has continuous internal calibration. Applications are medical, glass, ophthalmic and industrial.
OptiGauge II specifications
| Model | OptiGauge II |
|---|---|
| Manufacturer | Lumetrics, USA |
| Technology | Patented non-contact interferometric thickness measurement |
| Measurement range | 12µm to 16mm |
| Accuracy | ±0.1µm |
| Layers | Single and multi-layer measurements up to 49 layers |
| Configuration | Multi-probe configuration available |
| Calibration | Continuous internal calibration |
| Applications | Medical, glass, ophthalmic, industrial |
Specifications are as published by the manufacturer, Lumetrics. Download the product brochure or contact us to confirm the configuration for your laboratory.
Non-contact thickness gauge: frequently asked questions
What thickness range does the OptiGauge II measure?
The measurement range is 12µm to 16mm, with an accuracy of ±0.1µm.
How does the OptiGauge II measure thickness without touching the sample?
It uses patented non-contact interferometric thickness measurement technology.
How many layers can the OptiGauge II measure?
It handles single and multi-layer measurements up to 49 layers.
Can the OptiGauge II use more than one probe?
A multi-probe configuration is available, and the gauge has continuous internal calibration. Applications are medical, glass, ophthalmic and industrial. A brochure and product video are available from the buttons at the top of this page.
Where can I buy the Lumetrics OptiGauge II in India?
Multiflo Instruments, based in Navi Mumbai, supplies Lumetrics instruments in India. Our team can advise on the OptiGauge II, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
