Key Features
- Checks and controls the pourability of plastics in powder and granulate form by determining the flow-through time of a funnel, indicated in seconds
- DIN EN ISO 6186: procedure A gives information on processability and procedure B serves process control during production
- Discharge nozzles of 10, 15 and 25 mm diameter included, fitted by thread at the outlet of the funnel
- Funnel with an upper inner diameter of approx. 110 mm and a funnel angle of 20°
- Mounting plate with a stable stand for the funnel holding; leveling device and adjustable feet
- Adjustable filling funnel and polished funnel
- Robust and stable measuring device, approx. 8 kg
About the Karg Pourability Tester PM
The pourability tester type PM from Karg, Germany, is used as a check and for the control of the pourability of plastics in powder and granulate form, by determining the flow-through time of a funnel. The flow time is the time in which a certain mass or a certain volume of the sample flows through a funnel of exactly defined dimensions, indicated in seconds.
EN ISO 6186:1998 defines two procedures, A and B. Information on the processability can be derived from procedure A, and procedure B serves particularly for process control during production.

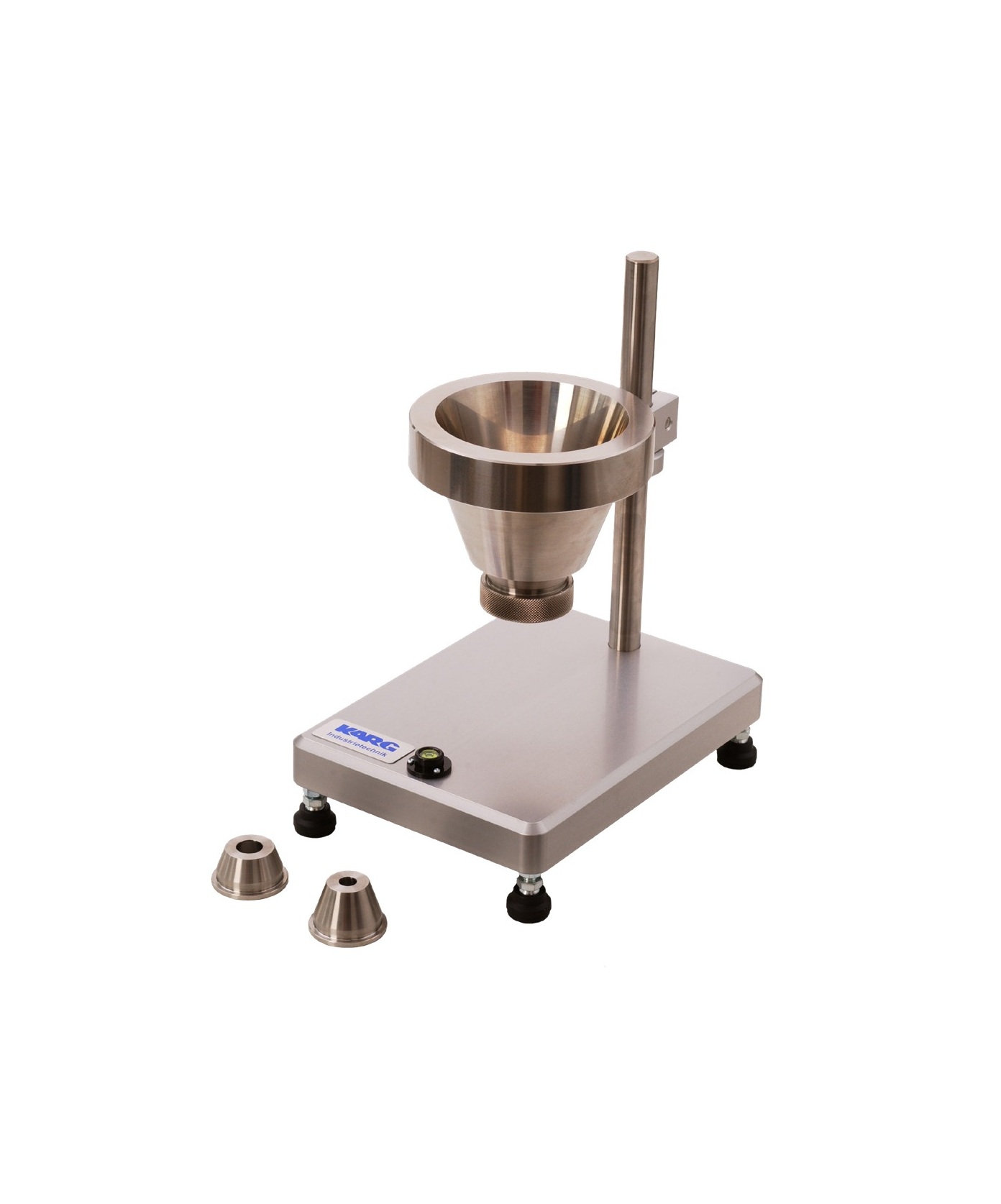

The equipment consists of a mounting plate with a stable stand for the funnel holding. A thread at the discharge of the funnel takes discharge nozzles of different diameters, and nozzles of 10, 15 and 25 mm are included. The funnel has an upper inner diameter of approx. 110 mm and a funnel angle of 20°.
The measuring device is robust and stable, with a leveling device and adjustable feet, an adjustable filling funnel and a polished funnel. It measures 180 × 312 × 250 mm (width, height, depth) and weighs approx. 8 kg.
Karg PM pourability tester specifications
| Model | Pourability tester, type PM |
|---|---|
| Manufacturer | Karg, Germany (Karg Industrietechnik) |
| Article number | 1012.2.000 |
| Standard | DIN EN ISO 6186 |
| Measures | Pourability of plastics in powder and granulate form: flow-through time of a funnel, in seconds (procedures A and B) |
| Upper inner diameter of funnel | Approx. 110 mm |
| Outlet inner diameter of funnel | 10 / 15 / 25 mm (discharge nozzles of 10, 15 and 25 mm included) |
| Funnel angle | 20° |
| Features | Mounting plate with stable stand for the funnel holding; leveling device; adjustable feet; adjustable filling funnel; polished funnel |
| Width × height × depth | 180 × 312 × 250 mm |
| Weight | Approx. 8 kg |
Specifications are as published by the manufacturer, Karg. Download the product brochure or contact us to confirm the configuration for your laboratory.
Pourability tester: frequently asked questions
What does the Karg pourability tester PM measure?
It checks and controls the pourability of plastics in powder and granulate form by determining the flow-through time of a funnel, indicated in seconds.
What is the flow time?
The flow time is the time in which a certain mass or a certain volume of the sample flows through a funnel with exactly defined dimensions. It is indicated in seconds.
Which standard does the PM follow?
DIN EN ISO 6186. EN ISO 6186:1998 defines two procedures: information on the processability can be derived from procedure A, and procedure B serves particularly for process control during production.
Which funnel nozzles does it have?
A thread at the discharge of the funnel takes different discharge nozzles, and nozzles of 10, 15 and 25 mm diameter are included. The funnel has an upper inner diameter of approx. 110 mm and a funnel angle of 20°.
What are its features, size and weight?
A leveling device, adjustable feet, an adjustable filling funnel and a polished funnel, on a mounting plate with a stable stand. It measures 180 × 312 × 250 mm (width, height, depth) and weighs approx. 8 kg. A brochure is available from the button at the top of this page.
Where can I buy the Karg pourability tester in India?
Multiflo Instruments, based in Navi Mumbai, supplies Karg testing instruments in India. Our team can advise on the Karg pourability tester PM, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
