Key Features
- Measures the apparent or bulk density of pellets and powders of different raw material supplies
- The values are also used to calculate the filling space of an injection mould
- Five versions (article numbers 1010.000, 1013.000, 1014.000, 1015.000 and 1016.000) for DIN EN ISO 60, ASTM D 1895 method A and B, GB/T 1636 and SL-QC-003
- Measuring cups of 100, 400 or 500 ml, with funnel outlets from 9.5 to 39 mm
- Leveling device and adjustable feet
- Adjustable filling funnel; quick release for the spout (instrument dependent)
- Polished funnel and cup; robust and stable measuring device

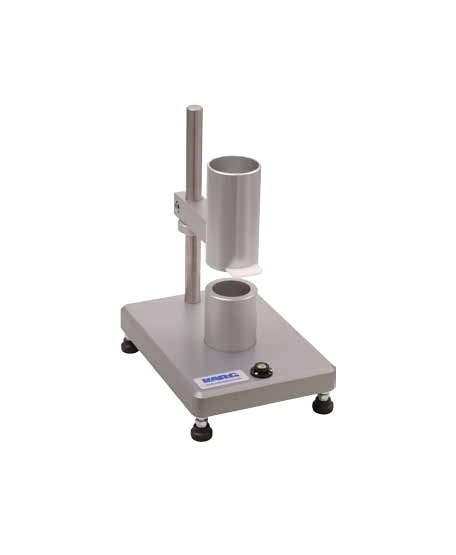

About the Karg Fluometer ADP Bulk Density Tester
The Fluometer type ADP from Karg, Germany, is a bulk density tester used to measure the apparent or bulk density of pellets and powders of different raw material supplies. The values determined with it are also used to calculate the filling space of an injection mould. The bulk density of powdered, granular and other materials is determined according to different standards.
Five versions are available: 1010.000 for DIN EN ISO 60 and GB/T 1636 type A, 1013.000 for ASTM D 1895 method A, 1014.000 for ASTM D 1895 method B, 1015.000 for SL-QC-003 and 1016.000 for GB/T 1636 type B. They differ in funnel and measuring cup: the cup volume is 100 ml, 400 ml or 500 ml and the funnel outlet runs from 9.5 to 39 mm; the full table is below.
The measuring device is robust and stable, with a leveling device and adjustable feet, an adjustable filling funnel, a polished funnel and cup, and a quick release for the spout (instrument dependent). The two smaller versions weigh approx. 8 kg and the other three approx. 15 kg.
Karg Fluometer ADP specifications
| Model | Fluometer, type ADP |
|---|---|
| Manufacturer | Karg, Germany (Karg Industrietechnik) |
| Article numbers | 1010.000, 1013.000, 1014.000, 1015.000, 1016.000 |
| Measures | Apparent or bulk density of pellets and powders of different raw material supplies |
| Other use | The values are used to calculate the filling space of an injection mould |
| Standards | DIN EN ISO 60, ASTM D 1895 (methods A and B), GB/T 1636 (types A and B), SL-QC-003, depending on the version |
| Features | Leveling device; adjustable feet; adjustable filling funnel; quick release for spout (instrument dependent); polished funnel and cup |
Versions of the Fluometer ADP
| Specification | 1010.000 | 1013.000 | 1014.000 | 1015.000 | 1016.000 |
|---|---|---|---|---|---|
| Standard | DIN EN ISO 60; GB/T 1636 type A | ASTM D 1895, Meth. A | ASTM D 1895, Meth. B | SL-QC-003 | GB/T 1636 type B |
| Upper inner diameter of funnel, approx. | 56 mm | 93 mm | 127 mm | 112 mm | 91 mm |
| Outlet inner diameter of funnel | 33 mm | 9.5 mm | 25.4 mm | 39 mm | 10 mm |
| Funnel angle | – | 20° | 12.45° | 15.7° | 20° |
| Inner diameter of measuring cup | 45 mm | 39.93 mm | 46 mm | 86 mm | 45 mm |
| Volume of measuring cup | 100 ml | 100 ml | 400 ml | 500 ml | 100 ml |
| Height of measuring cup | 70 mm | 85 mm | 240 mm | 91 mm | 70 mm |
| Width × height × depth | 180 × 312 × 250 mm | 250 × 872 × 320 mm | 250 × 872 × 320 mm | 250 × 872 × 320 mm | 180 × 312 × 250 mm |
| Weight, approx. | 8 kg | 15 kg | 15 kg | 15 kg | 8 kg |
A dash means the brochure gives no value.
Specifications are as published by the manufacturer, Karg. Download the product brochure or contact us to confirm the configuration for your laboratory.
Bulk density tester: frequently asked questions
What does the Karg Fluometer ADP measure?
It measures the apparent or bulk density of pellets and powders of different raw material supplies. The bulk density of powdered, granular and other materials is determined according to different standards.
What are the density values used for?
Besides the bulk density itself, the values determined with the Fluometer are used for the calculation of the filling space of an injection mould.
Which standards and versions are available?
There are five versions: 1010.000 for DIN EN ISO 60 and GB/T 1636 type A, 1013.000 for ASTM D 1895 method A, 1014.000 for ASTM D 1895 method B, 1015.000 for SL-QC-003 and 1016.000 for GB/T 1636 type B.
What are the measuring cup sizes?
The measuring cup holds 100 ml (versions 1010.000, 1013.000 and 1016.000), 400 ml (1014.000) or 500 ml (1015.000), with inner diameters of 45, 39.93, 46, 86 and 45 mm and heights of 70, 85, 240, 91 and 70 mm respectively.
What features, size and weight does the Fluometer have?
A leveling device, adjustable feet, an adjustable filling funnel, a quick release for the spout (instrument dependent) and a polished funnel and cup. Versions 1010.000 and 1016.000 measure 180 × 312 × 250 mm and weigh approx. 8 kg; versions 1013.000, 1014.000 and 1015.000 measure 250 × 872 × 320 mm and weigh approx. 15 kg (width, height, depth). A brochure is available from the button at the top of this page.
Where can I buy the Karg Fluometer bulk density tester in India?
Multiflo Instruments, based in Navi Mumbai, supplies Karg testing instruments in India. Our team can advise on the Karg Fluometer ADP bulk density tester, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
