Key Features
- Performs all three melt-flow test methods — MFI, MFR and MVR — to ASTM D1238 and TS EN ISO 1133, with the full standard load range of the AL MFI line from 0.325kg up to 21.6kg
- Dual-zone adaptive PID heating with independent temperature control in both compartments, 120–450°C range at ±0.1°C accuracy
- Titanium-coated tungsten carbide orifice and melting channel (precision orifice: 2.095 ± 0.005mm diameter, 8mm ± 0.025mm length) for long service life and repeatable results
- Automated, motor-driven cutter with 0.01-second cutting accuracy and adjustable timing, plus a 5-micron distance sensor and automatic weight-loading module
- Automatic weight loader
- Touch-screen operation with automated MFI/MVR calculation, statistical result evaluation, and USB data export through Alarge's own reporting software
- Modular design — convertible with the AL-MFI-A and AL-MFI-AB configurations in the same product line

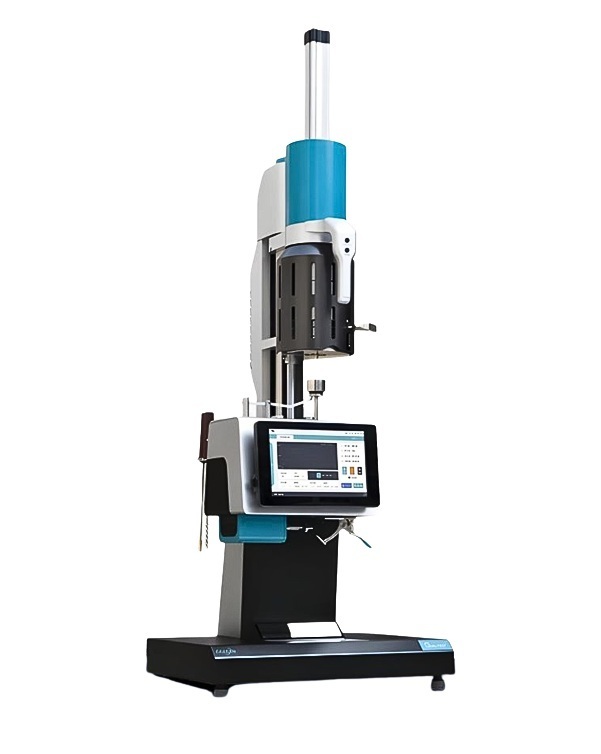

About the AL-MFI-ABA Automatic Melt Flow Indexer
The AL-MFI-ABA from Alarge, Turkey, performs all three melt-flow test methods — MFI, MFR and MVR — to ASTM D1238 and TS EN ISO 1133, with the full standard load range of the AL MFI line from 0.325 kg up to 21.6 kg. Dual-zone adaptive PID heating gives independent temperature control in both compartments across 120–450 °C at ±0.1 °C accuracy.
A titanium-coated tungsten carbide orifice and melting channel (precision orifice 2.095 ± 0.005 mm in diameter and 8 mm ± 0.025 mm long) give long service life and repeatable results. An automated, motor-driven cutter with 0.01-second cutting accuracy and adjustable timing is combined with a 5-micron distance sensor and an automatic weight loader. Touch-screen operation provides automated MFI/MVR calculation, statistical result evaluation and USB data export through Alarge’s own reporting software.
AL-MFI-ABA specifications
| Model | AL-MFI-ABA |
|---|---|
| Manufacturer | Alarge, Turkey |
| Test methods | MFI, MFR and MVR |
| Standards | ASTM D1238, TS EN ISO 1133 |
| Load range | 0.325 kg up to 21.6 kg (the full standard load range of the AL MFI line) |
| Heating | Dual-zone adaptive PID, independent temperature control in both compartments |
| Temperature range | 120–450 °C at ±0.1 °C accuracy |
| Orifice and channel | Titanium-coated tungsten carbide; precision orifice 2.095 ± 0.005 mm diameter, 8 mm ± 0.025 mm length |
| Cutter | Automated, motor-driven, 0.01-second cutting accuracy, adjustable timing |
| Sensing and loading | 5-micron distance sensor; automatic weight loader |
| Software and data | Touch-screen operation, automated MFI/MVR calculation, statistical result evaluation, USB data export through Alarge’s own reporting software |
| Configurations | Modular design, convertible with the AL-MFI-A and AL-MFI-AB |
Specifications are as published by the manufacturer, Alarge. Download the product brochure or contact us to confirm the configuration for your laboratory.
Automatic melt flow indexer: frequently asked questions
Which melt-flow tests and standards does the AL-MFI-ABA cover?
All three melt-flow test methods, MFI, MFR and MVR, to ASTM D1238 and TS EN ISO 1133.
What load and temperature ranges does it offer?
Loads from 0.325 kg up to 21.6 kg, the full standard load range of the AL MFI line. Dual-zone adaptive PID heating gives independent temperature control in both compartments across 120–450 °C at ±0.1 °C accuracy.
How does the automated cutter work?
It is a motor-driven cutter with 0.01-second cutting accuracy and adjustable timing, combined with a 5-micron distance sensor and an automatic weight loader.
Can the AL-MFI-ABA be converted to other configurations?
Yes. The design is modular and convertible with the AL-MFI-A and AL-MFI-AB configurations in the same product line.
Where can I buy the Alarge AL-MFI-ABA in India?
Multiflo Instruments, based in Navi Mumbai, supplies Alarge testing instruments in India. Our team can advise on the AL-MFI-ABA, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
