Key Features
- Microwave Induced Plasma decapsulation (MIP)
- 4 gas channels with mass flow controllers
- 200 watts generator operating at 2.45GHz
- Auto matching network
- Color camera (Keyence)
- XYZ automatic control
- Laser etching rate measurement by laser (Keyence)
About the Digit Concept iMIP-Dcap II

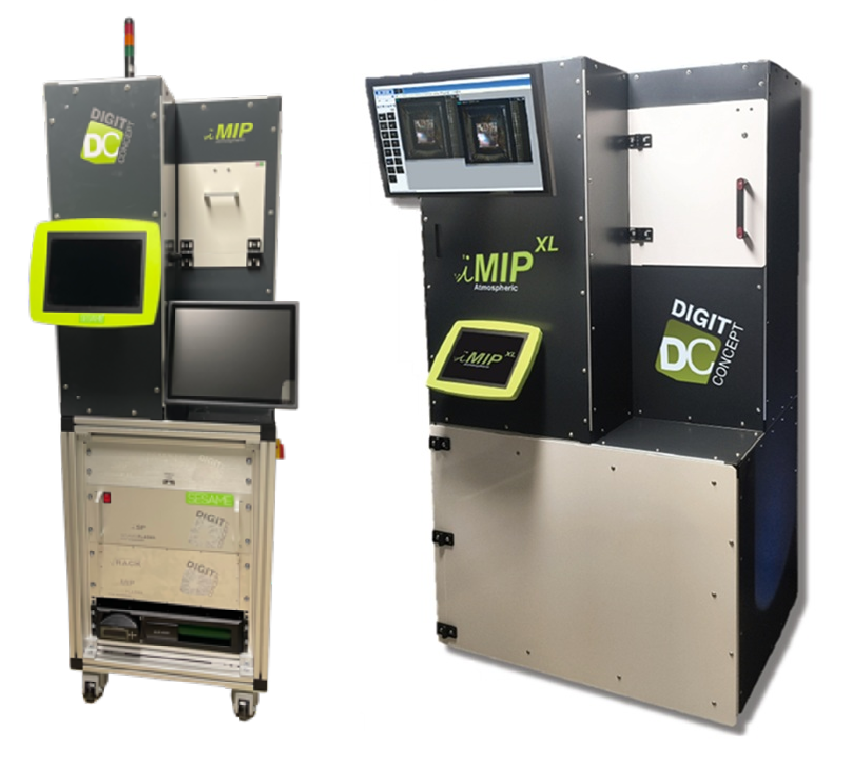

The iMIP-Dcap II from Digit Concept, France, is a microwave induced plasma (MIP) decapsulation system for IC failure analysis.
It has 4 gas channels with mass flow controllers and a 200 watts generator operating at 2.45GHz, with an auto matching network. A color camera (Keyence), XYZ automatic control and laser etching rate measurement (Keyence) complete the system.
iMIP-Dcap II specifications
| Model | iMIP-Dcap II |
|---|---|
| Manufacturer | Digit Concept, France |
| Technology | Microwave Induced Plasma decapsulation (MIP) |
| Gas channels | 4 gas channels with mass flow controllers |
| Generator | 200 watts generator operating at 2.45GHz |
| Matching network | Auto matching network |
| Camera | Color camera (Keyence) |
| Positioning | XYZ automatic control |
| Etching rate | Laser etching rate measurement (Keyence) |
Specifications are as published by the manufacturer, Digit Concept. Download the product brochure or contact us to confirm the configuration for your laboratory.
Plasma IC decapsulation: frequently asked questions
What decapsulation technique does the iMIP-Dcap II use?
It uses microwave induced plasma (MIP) decapsulation, for IC failure analysis.
How many gas channels does the iMIP-Dcap II have?
It has 4 gas channels with mass flow controllers.
What generator does the iMIP-Dcap II use?
A 200 watts generator operating at 2.45GHz, with an auto matching network.
How is the etching rate measured?
The iMIP-Dcap II has laser etching rate measurement (Keyence). It also has a color camera (Keyence) and XYZ automatic control. A brochure is available from the button at the top of this page.
Where can I buy the Digit Concept iMIP-Dcap II in India?
Multiflo Instruments, based in Navi Mumbai, supplies Digit Concept decapsulation systems in India. Our team can advise on the iMIP-Dcap II, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
