Key Features
- 10W, 20W, 30W IR fiber laser
- 3-in-1 tool: decapsulation, marking, cross section
- Laser ablation area up to 170 x 170mm
- Atmospheric plasma assisted; works with Al, Au, Cu, Cu/Pd, Ag wires
- Quick assisted focus with lateral camera, real-time vision during ablation with wide choice of FOV
- Easy to use with intuitive software, precise decapsulation using imported images, Z motorized in standard

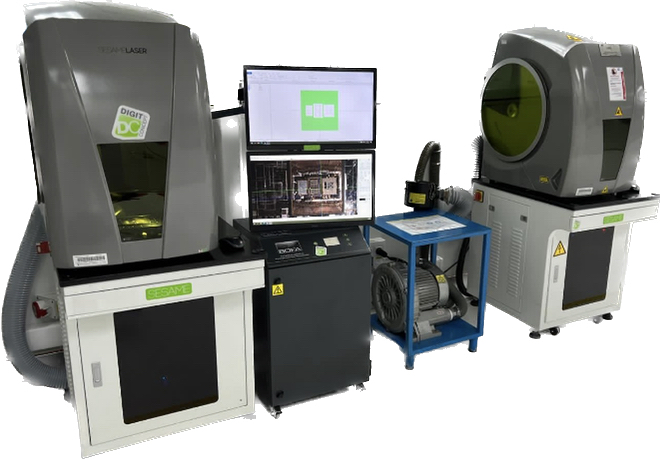

About the Digit Concept Laser IC Decapsulation Systems
The SLP 500 and SLP 1000 from Digit Concept, France, are laser IC decapsulation systems with a 10 W, 20 W or 30 W IR fiber laser. They are a 3-in-1 tool for decapsulation, marking and cross section, with a laser ablation area up to 170 x 170 mm.
The process is atmospheric plasma assisted and works with Al, Au, Cu, Cu/Pd and Ag wires. A lateral camera gives quick assisted focus and real-time vision during ablation, with a wide choice of FOV. The software is intuitive, supports precise decapsulation using imported images, and Z motorized is standard.
SLP 500 / SLP 1000 specifications
| Models | SLP 500 and SLP 1000 |
|---|---|
| Manufacturer | Digit Concept, France |
| Laser | 10 W, 20 W or 30 W IR fiber laser |
| Functions | 3-in-1 tool: decapsulation, marking, cross section |
| Laser ablation area | Up to 170 x 170 mm |
| Plasma | Atmospheric plasma assisted |
| Wire types | Al, Au, Cu, Cu/Pd, Ag |
| Focus and vision | Quick assisted focus with lateral camera; real-time vision during ablation with wide choice of FOV |
| Software | Intuitive; precise decapsulation using imported images |
| Z axis | Motorized in standard |
Specifications are as published by the manufacturer, Digit Concept. Download the product brochure or contact us to confirm the configuration for your laboratory.
Laser IC decapsulation: frequently asked questions
What can the Digit Concept SLP laser system do?
It is a 3-in-1 tool for decapsulation, marking and cross section.
What laser and ablation area does it have?
A 10 W, 20 W or 30 W IR fiber laser, with a laser ablation area up to 170 x 170 mm.
Which wire bonds can it work with?
It is atmospheric plasma assisted and works with Al, Au, Cu, Cu/Pd and Ag wires.
How is the decapsulation monitored and controlled?
A lateral camera gives quick assisted focus and real-time vision during ablation with a wide choice of FOV. The software is intuitive, supports precise decapsulation using imported images, and Z motorized is standard. A brochure and product video are available from the buttons at the top of this page.
Where can I buy the Digit Concept laser decapsulation system in India?
Multiflo Instruments, based in Navi Mumbai, supplies Digit Concept systems in India. Our team can advise on the SLP 500 or SLP 1000, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
