Key Features
- Measures Toxicity Index to Naval Engineering Standard NES 713 by burning 100g of specimen to complete combustion and analysing the resulting gas concentration in ppm
- Auto Ignition, Auto Vent and Auto Stirrer modes, each run by a programmable Time Device, plus an automatic vacuum pump that samples combustion gas at set intervals, matching the standard's procedure in Auto or Manual mode
- Chamber interior is Teflon-coated to minimise chemical reaction with the gaseous combustion products, keeping toxicity readings accurate
- Toxicity Index is calculated across 14 constituent gases — including carbon monoxide, hydrogen cyanide, hydrogen chloride, hydrogen fluoride, phosgene and sulphur dioxide — each weighted against the concentration considered fatal over a 30-minute exposure
- Reinforced-plastic observation window and a secure door-locking device let the operator monitor combustion conditions throughout the test
About the NES 713 Toxic Chamber

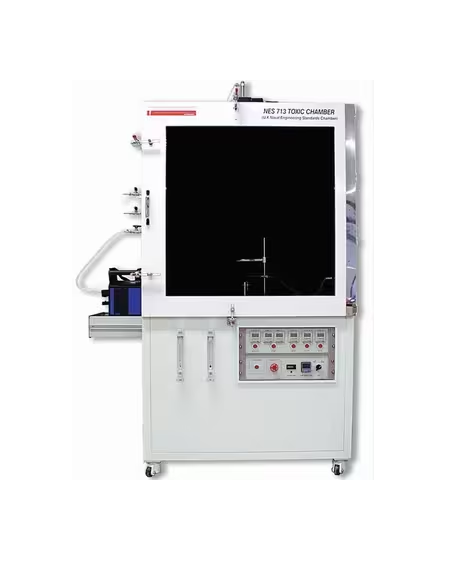

The NES 713 Toxic Chamber (model FT-7TC-710) from FT Solutions Co., Ltd. (FESTEC), South Korea, determines the Toxicity Index of the gases produced when a small material specimen burns. A 100 g specimen is burned to complete combustion inside the Teflon-coated chamber, the concentration of each combustion gas is measured in ppm, and every reading is compared with the concentration considered fatal over a 30-minute exposure. The ratios are added across 14 constituent gases, including carbon monoxide, hydrogen cyanide, hydrogen chloride, hydrogen fluoride, phosgene and sulphur dioxide, to give the Toxicity Index.
Auto Ignition, Auto Vent and Auto Stirrer modes run from programmable time devices, and an automatic vacuum pump samples the combustion gas at set intervals, so the test can follow the standard in Auto or Manual mode. A reinforced-plastic observation window and a secure door-locking device let the operator watch the burn safely. The chamber suits materials manufacturers and test laboratories that need NES 713 toxicity data for small material specimens, and Multiflo Instruments supplies it with installation, training and after-sales support in India.
NES 713 Toxic Chamber specifications
| Model | FT-7TC-710 |
|---|---|
| Manufacturer | FT Solutions Co., Ltd. (FESTEC), South Korea |
| Size (mm) | 1,185 × 700 × 2,100 |
| Power | AC 220 V, 50/60 Hz, 10 A |
| Weight | 150 kg |
| Utilities | Methane gas, propane gas (optional), compressed air, hood, duct and dust collector |
Specifications are as published by the manufacturer, FT Solutions Co., Ltd. (FESTEC). Download the product brochure or contact us to confirm the configuration for your laboratory.
NES 713 Toxic Chamber: frequently asked questions
What does the NES 713 Toxic Chamber measure?
It measures the Toxicity Index of combustion products to NES 713. A 100 g specimen is burned completely, the concentration of each gas in the chamber is recorded in ppm, and each value is divided by the concentration considered fatal to man over a 30-minute exposure. Adding these ratios for the 14 constituent gases gives the Toxicity Index.
Can the FT-7TC-710 run the test automatically?
Yes. Auto Ignition, Auto Vent and Auto Stirrer modes are each controlled by a programmable time device, and an automatic vacuum pump samples the combustion gas at set intervals. The chamber is designed to be run in either Auto or Manual mode.
Why is the chamber interior Teflon-coated?
The Teflon coating minimises chemical reaction between the chamber wall and the gaseous combustion products, which keeps the measured gas concentrations, and therefore the Toxicity Index, accurate.
What are the installation requirements for the FT-7TC-710?
The chamber measures 1,185 × 700 × 2,100 mm and weighs 150 kg. It needs an AC 220 V, 50/60 Hz, 10 A supply, methane gas (propane gas is optional), compressed air, and hood, duct and dust-collector connections for extraction.
Where can I buy the NES 713 Toxic Chamber (FT-7TC-710) in India?
Multiflo Instruments, based in Navi Mumbai, supplies FT Solutions (FESTEC) test equipment across India. Our team can advise on the FT-7TC-710, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
