ModuleSci, South Korea

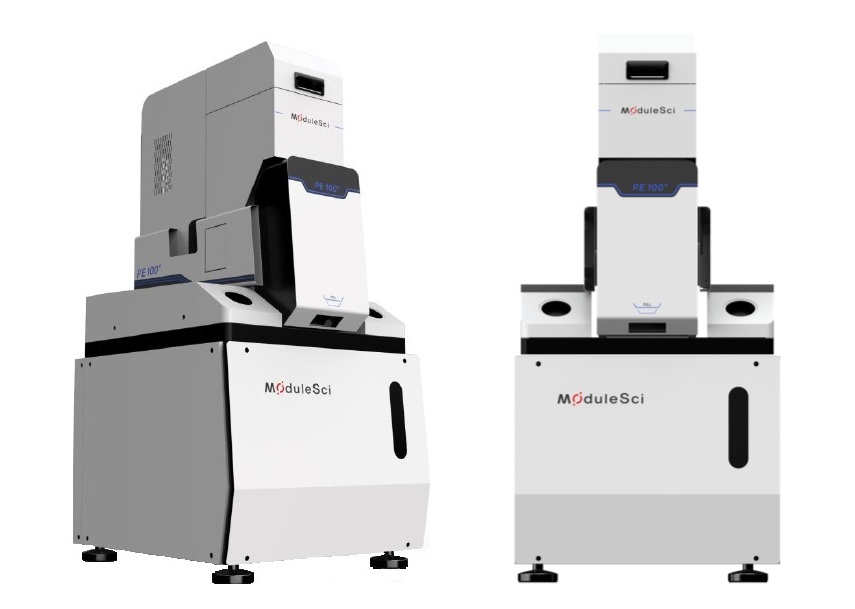

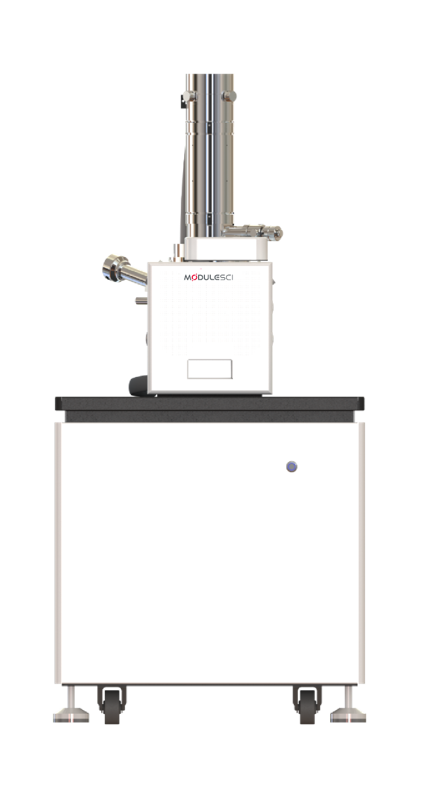

Normal W-SEM
Model: PicoEye-100 (PE-100)
Key Features
- Compact tungsten filament Scanning Electron Microscope built for ease of operation, low cost of ownership and broad applicability
- Suited to fracture analysis of metallic materials, phase-separation observation in polymers, and failure root-cause tracing
- Resolution of 3 nm at 30 kV, with simultaneous high-quality SE and BSE imaging plus image mixing
- Optical navigation and sample-chamber monitoring for rapid sample positioning
- One-click automatic adjustment and fast vacuum pumping simplify daily inspection
- Low vacuum mode observes non-conductive materials directly, without conductive coating
- Supports multiple detector options and image-stitching module expansion
Specifications
| Parameter | Specification |
|---|---|
| Emission source | Pre-aligned tungsten filament electron gun |
| Resolution | 3.0 nm |
| Magnification (photo) | 30× ~ 300,000× |
| Accelerating voltage | 1~30 kV |
| Detector | Secondary Electron Detector (ETD); optional Backscattered Electron Detector (BSED), EDS |
| Image format | TIFF, JPG, BMP, PNG |
| High vacuum mode | ≤5×10⁻⁴ Pa |
| Low vacuum mode (optional) | 6~150 Pa |
| Automatic stage | 5-axis |
| Stage moving range | X: 0~50 mm, Y: 0~50 mm, Z: 3~50 mm |
| Main unit dimensions | 670(W) × 780(D) × 1450(H) mm |
| Weight | 310 kg |
| Room requirements | 2m × 2.5m × 2m |
| Power supply | AC 110/220V (±10%), 50/60Hz, 1.5kW |
| Temperature & humidity | 20±5°C, ≤60%RH |
A compact tabletop sibling (PV-100P) and a field-emission model (PE-300) are also available in the ModuleSci SEM range.
Application Examples
A sample of imaging results produced on the PE-100.
Ceramic
5kV, SE imaging
Steel Inclusions
15kV, SE imaging
Drosophila Compound Eye
15kV, SE imaging
Tin Ball
20kV, SE imaging
Semiconductor Chip
20kV, BSE imaging
Mask
30kV, SE imaging
Intelligent Operating Software
ModuleSci’s self-developed SEM software captures an image in three guided steps: mount and set the sample, take a navigation image while the chamber evacuates, then navigate to the region of interest and capture the SEM image. Automatic brightness/contrast, focus and astigmatism adjustment run in the background, with live chamber monitoring throughout.
Photo-assist tools include dimension measurement, image mixing and gesture-based quick navigation, with optional image stitching for wide-field views.
Software at a Glance
- Workflow
- Mount sample → navigate & evacuate → locate ROI & capture
- Languages
- Korean, English, Chinese, French, German, Russian
- Photo-assist tools
- Dimension measurement, image mixing, gesture navigation, optional image stitching
About the Floor SEM
The PicoEye-100 (PE-100), also called the Normal W-SEM, is a compact floor-standing tungsten-filament scanning electron microscope from ModuleSci, South Korea, built for ease of operation, low cost of ownership and broad applicability. It resolves 3 nm at 30 kV with simultaneous high-quality SE and BSE imaging plus image mixing, over a magnification range of 30× to 300,000×.
Optical navigation and sample-chamber monitoring speed up sample positioning, and one-click automatic adjustment with fast vacuum pumping simplifies daily inspection. The optional low vacuum mode (6–150 Pa) observes non-conductive materials directly, without conductive coating. Typical uses include fracture analysis of metallic materials, phase-separation observation in polymers and failure root-cause tracing.
Floor SEM: frequently asked questions
What are the resolution and magnification of the PicoEye-100 SEM?
3.0 nm at 30 kV, with a photo magnification of 30× to 300,000× and an accelerating voltage of 1–30 kV, from a pre-aligned tungsten filament electron gun.
Can the PE-100 image non-conductive samples without coating?
Yes. The optional low vacuum mode (6–150 Pa) observes non-conductive materials directly, without conductive coating. High vacuum is ≤5×10⁻⁴ Pa.
How does the PE-100 differ from the other ModuleSci SEMs?
The PE-100 is the compact floor-standing tungsten-filament model. A compact tabletop sibling (PV-100P) and a field-emission model (PE-300) are also available in the ModuleSci SEM range.
What are the installation requirements of the PE-100?
The main unit measures 670 × 780 × 1450 mm (W × D × H) and weighs 310 kg. The room should be 2 m × 2.5 m × 2 m at 20 ± 5 °C and ≤60% RH, with AC 110/220 V (±10%), 50/60 Hz, 1.5 kW.
Where can I buy the ModuleSci Floor SEM in India?
Multiflo Instruments, based in Navi Mumbai, supplies the ModuleSci SEM range in India. Our team can advise on the PE-100, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
