Key Features
- Product screening to international environmental regulations (RoHS, WEEE, ELV compliant)
- With advanced FP and Calibration Curve modes, ISP’s benchtop XRF system delivers accurate results for restricted substances like Cd, Pb, Hg, Cr⁶⁺, and Br
- Energy Resolution of SDD: 125eV FWHM at Mn Kα
- Simultaneous multi-element analysis (solids, liquids, powder)
- Optional: 10ch auto sample changer
- Optional plating thickness: 0.2, 0.5, 1mm collimator option

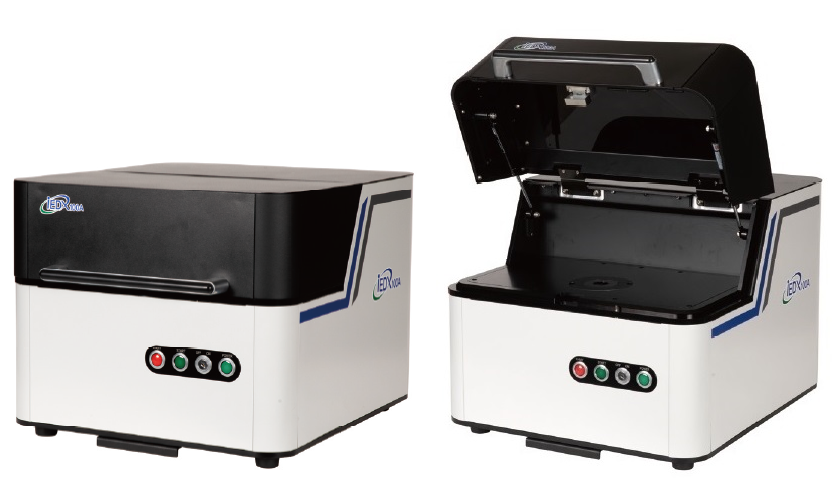

About the ISP iEDX 120A EDXRF RoHS Analyzer
The iEDX 120A from ISP Co. Ltd., South Korea, is a benchtop EDXRF system for product screening to international environmental regulations; it is RoHS, WEEE and ELV compliant. With advanced FP and Calibration Curve modes, it delivers accurate results for restricted substances such as Cd, Pb, Hg, Cr⁶⁺ and Br.
The SDD has an energy resolution of 125 eV FWHM at Mn Kα, and the system performs simultaneous multi-element analysis of solids, liquids and powder. Options are a 10ch auto sample changer and plating thickness measurement with a 0.2, 0.5 or 1 mm collimator.
iEDX 120A specifications
| Model | iEDX 120A |
|---|---|
| Manufacturer | ISP Co. Ltd., South Korea |
| Technique | Benchtop EDXRF |
| Regulations | Product screening to international environmental regulations (RoHS, WEEE, ELV compliant) |
| Restricted substances | Cd, Pb, Hg, Cr⁶⁺ and Br |
| Analysis modes | Advanced FP and Calibration Curve modes |
| Energy resolution of SDD | 125 eV FWHM at Mn Kα |
| Samples | Simultaneous multi-element analysis of solids, liquids and powder |
| Option: sample changer | 10ch auto sample changer |
| Option: plating thickness | 0.2, 0.5, 1 mm collimator option |
Specifications are as published by the manufacturer, ISP. Download the product brochure or contact us to confirm the configuration for your laboratory.
EDXRF RoHS analyzer: frequently asked questions
Which regulations does the ISP iEDX 120A screen for?
It is used for product screening to international environmental regulations and is RoHS, WEEE and ELV compliant.
Which restricted substances can the iEDX 120A measure?
With advanced FP and Calibration Curve modes, it delivers accurate results for restricted substances such as Cd, Pb, Hg, Cr⁶⁺ and Br.
What kinds of samples can it analyze, and what is the energy resolution?
It performs simultaneous multi-element analysis of solids, liquids and powder. The SDD energy resolution is 125 eV FWHM at Mn Kα.
What options are available for the iEDX 120A?
A 10ch auto sample changer, and plating thickness measurement with a 0.2, 0.5 or 1 mm collimator option. A brochure and product video are available from the buttons at the top of this page.
Where can I buy the ISP iEDX 120A in India?
Multiflo Instruments, based in Navi Mumbai, supplies ISP XRF analyzers in India. Our team can advise on the iEDX 120A, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
