Key Features
- Identifies material composition and alloy grade in under 2 seconds — precious metal alloys, low alloy and stainless steel, tool steel, chrome/molybdenum steel, nickel and cobalt alloys, titanium, copper, bronze, zinc, tungsten, aluminum and magnesium grades, for reliable positive material identification (PMI)
- Performance comparable to benchtop XRF models, with simultaneous analysis of up to 40 elements (atomic number 12 to 92, magnesium to uranium) and light-element detection without helium gas
- Rugged, field-ready build: 5-inch high-definition touchscreen with 360° rotation, waterproof and dustproof housing, and a heavy-duty travel case
- Rechargeable 9000mAh battery for up to 12 hours of continuous use; an optional 27000mAh battery extends this to 3 days between charges
- Multiple X-ray safety protections: automatic tube shutoff without a sample present, lead-coated steel housing, rubber scatter shield, and a manual security interlock
- Two selectable software modes — Operator mode for quick day-to-day testing and Expert mode for in-depth analysis — plus a built-in 5-megapixel camera for sample positioning

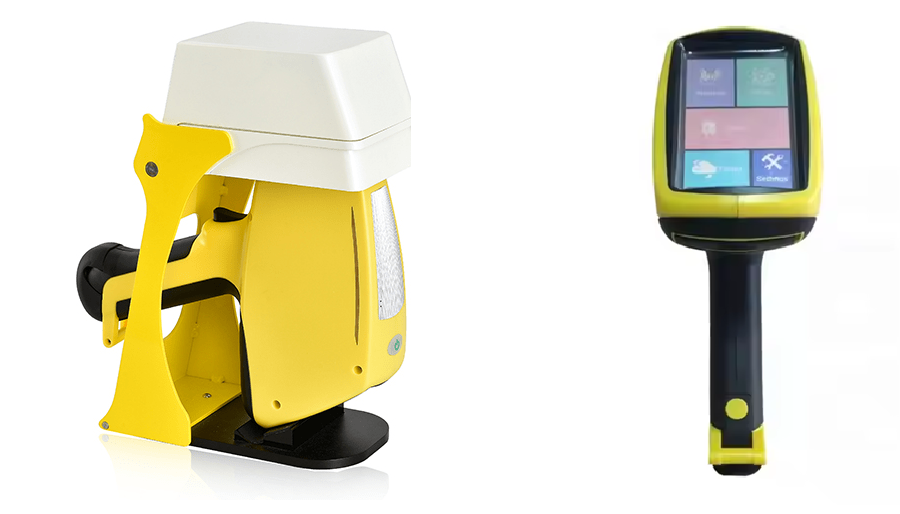

About the EXPLORER 5000 Handheld XRF Analyzer
The EXPLORER 5000 from Skyray Instruments, USA, is a handheld XRF analyzer for positive material identification (PMI). It identifies material composition and alloy grade in under 2 seconds across precious metal alloys, low alloy and stainless steel, tool steel, chrome/molybdenum steel, nickel and cobalt alloys, titanium, copper, bronze, zinc, tungsten, aluminum and magnesium grades.
Performance is comparable to benchtop XRF models, with simultaneous analysis of up to 40 elements (atomic number 12 to 92, magnesium to uranium) and light-element detection without helium gas. The housing is waterproof and dustproof, the 5-inch high-definition touchscreen rotates 360°, and a built-in 5-megapixel camera helps position the sample. Operator mode suits quick day-to-day testing and Expert mode gives in-depth analysis.
EXPLORER 5000 specifications
| Model | EXPLORER 5000 |
|---|---|
| Manufacturer | Skyray Instruments, USA |
| Analysis time | Under 2 seconds to identify material composition and alloy grade |
| Elements | Up to 40 simultaneously, atomic number 12 to 92 (magnesium to uranium); light elements detected without helium gas |
| Materials identified | Precious metal alloys, low alloy and stainless steel, tool steel, chrome/molybdenum steel, nickel and cobalt alloys, titanium, copper, bronze, zinc, tungsten, aluminum and magnesium grades |
| Display | 5-inch high-definition touchscreen with 360° rotation |
| Build | Waterproof and dustproof housing, heavy-duty travel case |
| Battery | 9000 mAh rechargeable, up to 12 hours of continuous use; optional 27000 mAh battery, up to 3 days between charges |
| X-ray safety | Automatic tube shutoff without a sample present, lead-coated steel housing, rubber scatter shield, manual security interlock |
| Software | Operator mode for quick day-to-day testing, Expert mode for in-depth analysis |
| Camera | Built-in 5-megapixel camera for sample positioning |
Specifications are as published by the manufacturer, Skyray Instruments. Download the product brochure or contact us to confirm the configuration for your laboratory.
Handheld XRF analyzer: frequently asked questions
How fast does the Skyray EXPLORER 5000 identify an alloy?
In under 2 seconds. It identifies material composition and alloy grade across precious metal alloys, low alloy and stainless steel, tool steel, chrome/molybdenum steel, nickel and cobalt alloys, titanium, copper, bronze, zinc, tungsten, aluminum and magnesium grades, for reliable positive material identification (PMI).
Which elements can it analyze, and is helium needed?
It analyzes up to 40 elements simultaneously, from atomic number 12 to 92 (magnesium to uranium), with performance comparable to benchtop XRF models. Light elements are detected without helium gas.
Is the EXPLORER 5000 suitable for field use?
Yes. The housing is waterproof and dustproof, the 5-inch high-definition touchscreen rotates 360°, and a heavy-duty travel case is included. The rechargeable 9000 mAh battery lasts up to 12 hours of continuous use, and an optional 27000 mAh battery extends this to 3 days between charges.
What X-ray safety protections does it have?
Automatic tube shutoff when no sample is present, a lead-coated steel housing, a rubber scatter shield and a manual security interlock.
Where can I buy the Skyray EXPLORER 5000 in India?
Multiflo Instruments, based in Navi Mumbai, supplies Skyray Instruments analyzers in India. Our team can advise on the EXPLORER 5000, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
