Key Features
- Oil analysis as per ASTM D4294, ISO 20847, ISO 8754, and IP 336
- No helium purge
- Constant self-check, zero and span correction
- Due to the lateral sampler and vertical positioning of the sample cup window, errors from sample inhomogeneity (e.g. water and air bubbles in sample) are excluded
- X-ray optics protected from accidental sample spills/leaks
- No need for additional protection film and no errors from film contamination and non-uniformity

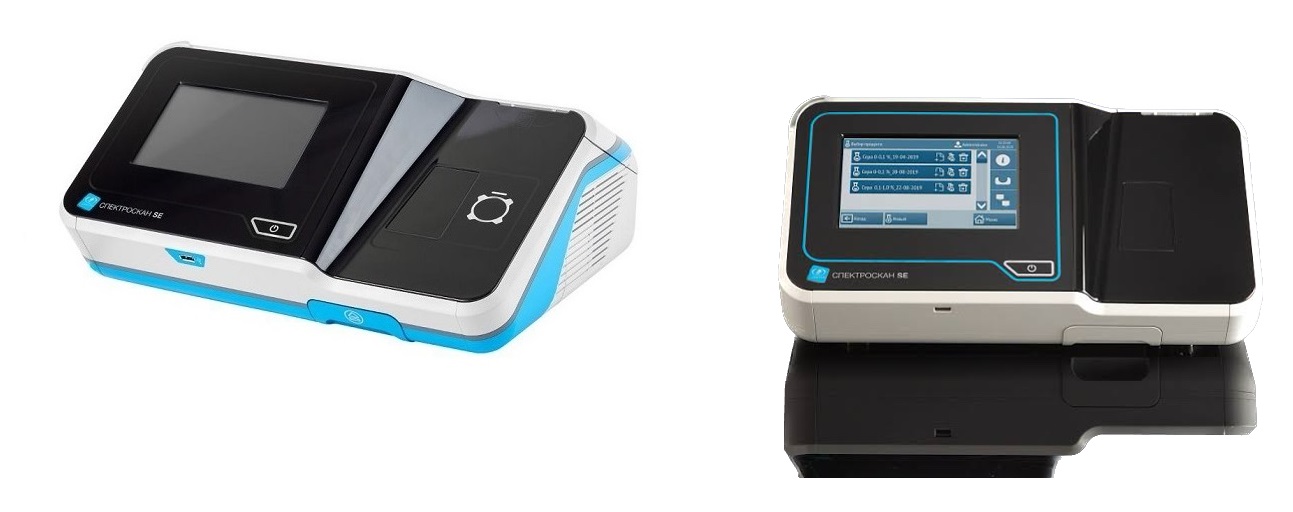

About the Spectron Spectroscan SE
The Spectroscan SE from Spectron, Russia, is an EDXRF analyzer for sulfur in oil. Oil analysis is as per ASTM D4294, ISO 20847, ISO 8754 and IP 336, and no helium purge is needed.
The analyzer runs a constant self-check with zero and span correction. Because of the lateral sampler and the vertical positioning of the sample cup window, errors from sample inhomogeneity (such as water and air bubbles in the sample) are excluded, and the X-ray optics are protected from accidental sample spills and leaks.
There is no need for additional protection film, so there are no errors from film contamination and non-uniformity.
Spectroscan SE specifications
| Model | Spectroscan SE |
|---|---|
| Manufacturer | Spectron, Russia |
| Type | EDXRF analyzer for sulfur in oil |
| Standards | ASTM D4294, ISO 20847, ISO 8754 and IP 336 |
| Helium purge | No helium purge |
| Self-check | Constant self-check, zero and span correction |
| Sampling | Lateral sampler and vertical positioning of the sample cup window; errors from sample inhomogeneity (e.g. water and air bubbles in the sample) are excluded |
| X-ray optics | Protected from accidental sample spills/leaks |
| Protection film | No need for additional protection film; no errors from film contamination and non-uniformity |
Specifications are as published by the manufacturer, Spectron. Download the product brochure or contact us to confirm the configuration for your laboratory.
Sulfur in oil EDXRF analyzer: frequently asked questions
Which standards does the Spectroscan SE follow?
Oil analysis is as per ASTM D4294, ISO 20847, ISO 8754 and IP 336.
Does the Spectroscan SE need a helium purge?
No. The analyzer needs no helium purge.
How does the Spectroscan SE keep its readings reliable?
It runs a constant self-check with zero and span correction. The lateral sampler and the vertical positioning of the sample cup window exclude errors from sample inhomogeneity, such as water and air bubbles in the sample.
Is a protection film needed over the sample cup?
No. There is no need for additional protection film, so there are no errors from film contamination and non-uniformity. The X-ray optics are also protected from accidental sample spills and leaks. A brochure is available from the button at the top of this page.
Where can I buy the Spectron Spectroscan SE in India?
Multiflo Instruments, based in Navi Mumbai, supplies Spectron analyzers in India. Our team can advise on the Spectroscan SE, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
