Key Features
- WVTR: the GBPI W301 2.0 Water Vapor Permeability Analyzer tests the water vapor transmission rate of films, sheets, paper and packaging by the gravimetric (weight-loss) method, with a resolution of 0.0001 g/(m²·24h) across a 0.1–10,000 g/(m²·24h) range
- WVTR standards: GB/T 1037, GB/T 16928, ASTM E96/E96M, ASTM D1653, TAPPI T464, ISO 2528, DIN 53122-1, JIS Z0208, YBB 00092003
- OTR: the GBPI Y110 2.0 Oxygen Permeability Analyzer uses a high-precision imported coulometric sensor, with a resolution of 0.0001 cm³/(m²·24h·0.1MPa) across a 0.01–1,000 cm³/(m²·24h·0.1MPa) range
- OTR standards: GB/T 19789, ASTM D3985, ASTM F1927, ASTM F2622, ISO 15105-2, DIN 53380-3, JIS K-7126-B, YBB 00082003
- Automatic semiconductor temperature control (±0.1°C) and dual-airflow humidity control, an 11.6-inch touchscreen, one-button fully automatic testing and real-time curve visualization on both instruments
- GMP-compliant intelligent operating system with audit trail, multi-level user permissions, e-signatures, and offline or PC-connected online testing

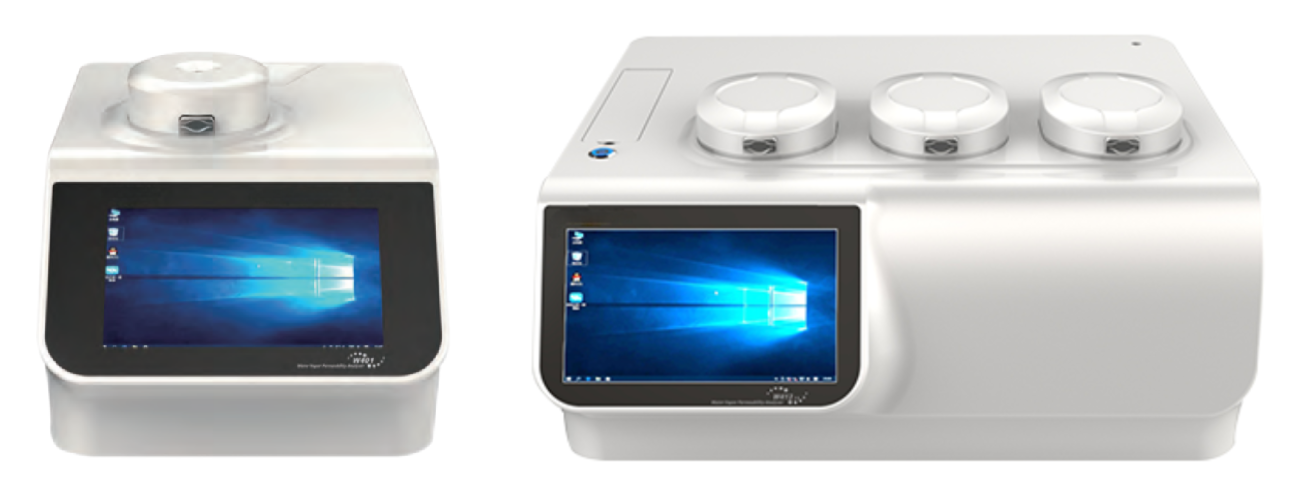

- 3-chamber, high-throughput versions are also available (W303 2.0 for WVTR, Y310 2.0 for OTR) for simultaneous multi-sample testing
Technical Specifications
Key performance parameters for the standard single-chamber models. 3-chamber, high-throughput versions (W303 2.0 for WVTR, Y310 2.0 for OTR) share the same core technology across three independent test chambers.
W301 2.0 — WVTR (Gravimetric Method)
| Parameter | Specification |
|---|---|
| Test range | 0.1–10,000 g/(m²·24h) |
| Test precision | 0.0001 g/(m²·24h) |
| Temperature range | 15–55°C, ±0.1°C accuracy |
| Humidity range | ≤10%RH, ±2%RH accuracy |
| Test area | 50.24 cm² |
| Sample size / thickness | Φ90 mm / ≤3 mm |
| Power | 450 W, AC 220V 50Hz |
Y110 2.0 — OTR (Coulometric Sensor Method)
| Parameter | Specification |
|---|---|
| Test range | 0.01–1,000 cm³/(m²·24h·0.1MPa), to 260,000 with a mask |
| Resolution | 0.0001 cm³/(m²·24h·0.1MPa) |
| Temperature range | 15–45°C, ±0.1°C accuracy |
| Humidity range | 0%RH, 5–90%RH, 100%RH, ±2%RH accuracy |
| Permeable area | 50.24 cm² (custom fittings down to 0.785 cm²) |
| Sample size / thickness | Φ100 mm / ≤3 mm |
| Power | 450 W, AC 220V 50Hz |
Both instruments are built to GB/T, ASTM, ISO, JIS, DIN and YBB standards and are calibrated against independently developed national standard reference materials (GBW(E)130543/130544 for WVTR, GBW(E)130497/130498 for OTR).
Why GBPI Instruments
Every GBPI permeability tester is built on the same engineering platform, refined across the full WVTR and OTR range.
Patented Sensor Technology
High-precision imported infrared and oxygen sensors deliver ultra-high stability, ultra-low failure rates and best-in-class resolution.
Precise Temperature & Humidity Control
Semiconductor-stabilized temperature control to ±0.1°C and dual-airflow humidity control to ±1–2%RH.
Wide Range, High Throughput
Single- and 3-chamber configurations cover high, medium and low barrier materials, plus adapters for bottles, bags and bowls.
Real-Time Curve Visualization
An 11.6-inch touchscreen displays live transmission, temperature, humidity and flow curves during every automatic, one-button test.
GMP-Compliant Software
Self-developed intelligent operating system with audit trail, multi-level permissions, e-signatures and flexible report formats.
Offline or Online Detection
Runs independently on its own operating system, or connects to a PC for online testing with automatic data processing.
Professional Calibration
Calibrated against independently developed national standard reference materials for accurate, traceable, authoritative data.
Laboratory IoT Platform
Connect to GBPI’s IoT platform for remote data management, diagnostics, troubleshooting and on-demand documentation.
Applications
GBPI WVTR and OTR testers cover permeability testing across packaging, pharmaceutical, food, hygiene and photovoltaic materials.
Films
PP, PET, PE, PVC, BOPP, CPP, composite, co-extruded, aluminized and degradable (PLA/PBAT/PBS) films
Sheets
Solid pharmaceutical hard sheet (PP/PVC/PTP), metal composite sheet and rubber sheet
Paper & Cardboard
Coated paper, silicone paper, cigarette-pack aluminized paper and paper–aluminum–plastic composites
Medicinal Patches
Medical plasters and transdermal therapy patches
Pharma & Consumer Packaging
Polyethylene bottles, sealed bags, ointment tubes, infusion hoses and plastic trays via customizable fixtures
Hygiene Products
Sanitary napkins, panty liners and related nonwoven products
Rigid Packaging
Wine and beverage bottles, Tetra Pak cartons, three-piece cans, cosmetic packaging and closures
Solar Backsheet
Oxygen and moisture barrier testing of photovoltaic backplane materials
Pipes
Oxygen permeability testing of PPR and other multilayer barrier pipes
Standard Configuration & Requirements
Every GBPI WVTR/OTR tester ships complete with the accessories needed to start testing, and is backed by a one-year warranty, free software upgrades, lifetime technical support and free factory operator training.
GBPI also operates a CNAS-accredited testing centre (CNAS L8185) for incoming sample testing and sample data comparison, alongside a Reference Standards Development Centre that provides ongoing calibration services.
What’s Included & What You’ll Need
- Standard configuration
- Power cord, weighing pan/syringe, permeation cup or sampler, sealing grease, standard weights/film, molecular sieve, serial cable, wrenches, screwdriver and mouse
- Optional accessories
- Computer and calibration certificate
- Site requirements
- Standard lab environment, regulated 220V/50Hz supply, a Windows 10 PC with a nine-pin serial port, and distilled/purified water (WVTR) or 99.999% oxygen & nitrogen supply (OTR)
WVTR and OTR testers: frequently asked questions
What is the difference between WVTR and OTR testing?
WVTR is water vapor transmission rate and OTR is oxygen transmission rate. The GBPI W301 2.0 measures WVTR by the gravimetric (weight-loss) method, while the Y110 2.0 measures OTR with a high-precision imported coulometric sensor.
Which standards do the W301 2.0 and Y110 2.0 follow?
WVTR: GB/T 1037, GB/T 16928, ASTM E96/E96M, ASTM D1653, TAPPI T464, ISO 2528, DIN 53122-1, JIS Z0208 and YBB 00092003. OTR: GB/T 19789, ASTM D3985, ASTM F1927, ASTM F2622, ISO 15105-2, DIN 53380-3, JIS K-7126-B and YBB 00082003.
What measuring ranges do the WVTR and OTR testers cover?
The W301 2.0 covers 0.1–10,000 g/(m²·24h) with 0.0001 g/(m²·24h) precision over a 50.24 cm² test area. The Y110 2.0 covers 0.01–1,000 cm³/(m²·24h·0.1MPa), up to 260,000 with a mask, at 0.0001 resolution. Temperature is controlled to ±0.1 °C on both.
Which materials can be tested?
Films (PP, PET, PE, PVC, BOPP, CPP, composite, co-extruded, aluminized and degradable PLA/PBAT/PBS), sheets, paper and cardboard, medicinal patches, pharma and consumer packaging, hygiene products, rigid packaging, solar backsheet and pipes.
Where can I buy GBPI WVTR and OTR testers in India?
Multiflo Instruments, based in Navi Mumbai, supplies GBPI permeability testers in India. Each tester ships complete with a one-year warranty, free software upgrades, lifetime technical support and free factory operator training. Use the Contact Us button or call +91-22-44516175.
