IDM Instruments, Australia
Laboratory Heat Sealer
Model: L0001 PRO & L0001 PRO-S
Key Features
- An economic Laboratory Heat Sealer to help determine the sealing parameters of film, laminated films, coated paper and other flexible barrier materials as per ASTM F2029, ASTM F88
- 5/10/25mm x 180mm interchangeable Teflon-coated sealing bars
- Temp range: ambient to 300°C
- Sealing time variable by timer setting 0 – 999.9s
- Maximum sealing force at 80 psi – 280kg per 10cm²

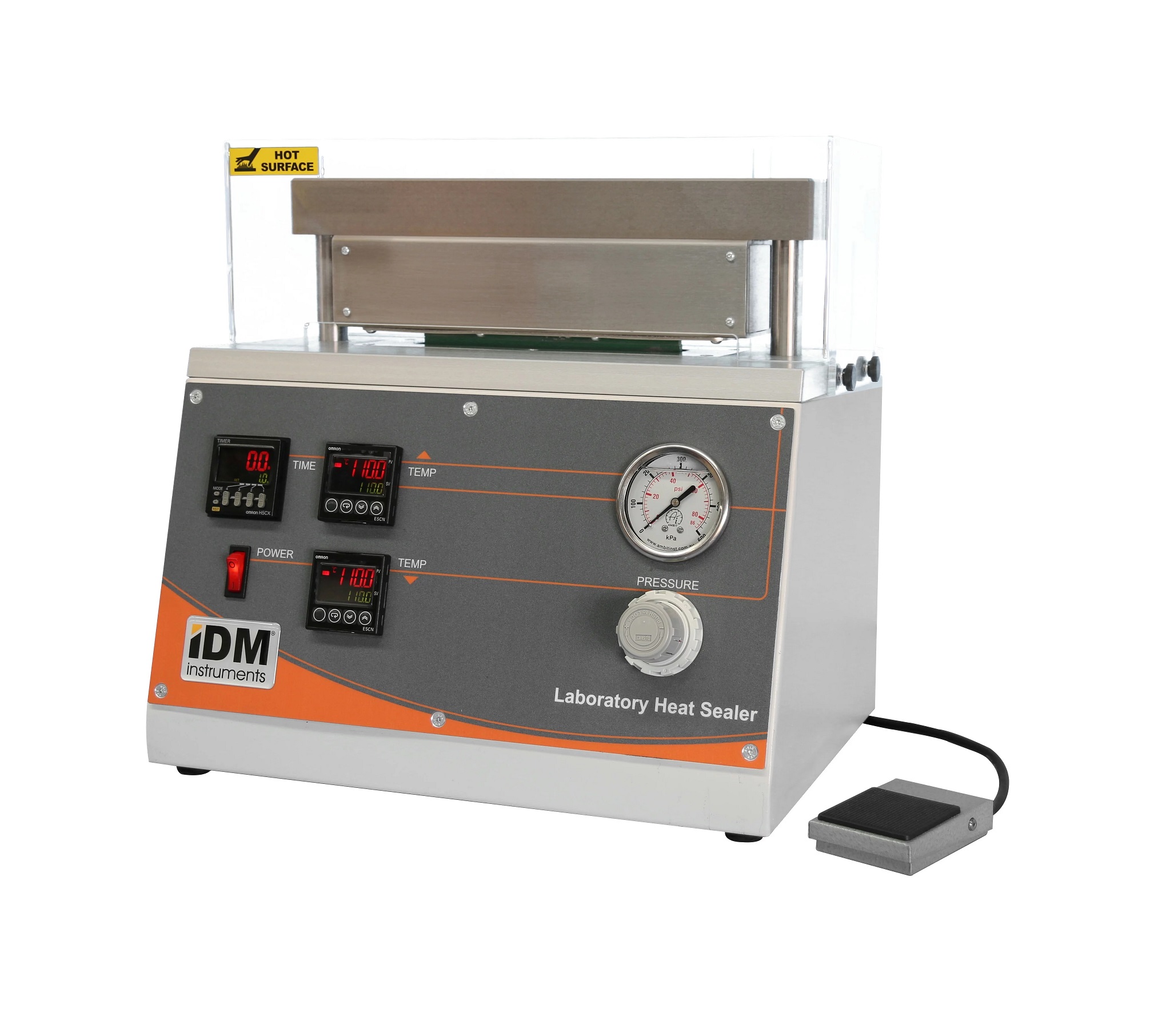

About the IDM L0001 PRO Laboratory Heat Sealer
The L0001 PRO and L0001 PRO-S from IDM Instruments, Australia, are economic laboratory heat sealers that help determine the sealing parameters of film, laminated films, coated paper and other flexible barrier materials as per ASTM F2029 and ASTM F88.
Sealing bars are interchangeable Teflon-coated 5, 10 or 25 mm x 180 mm bars. The temperature range runs from ambient to 300 °C, sealing time is variable by timer setting from 0 to 999.9 s, and the maximum sealing force at 80 psi is 280 kg per 10 cm².
L0001 PRO specifications
| Models | L0001 PRO and L0001 PRO-S |
|---|---|
| Manufacturer | IDM Instruments, Australia |
| Purpose | Determines the sealing parameters of film, laminated films, coated paper and other flexible barrier materials |
| Standards | ASTM F2029, ASTM F88 |
| Sealing bars | 5/10/25 mm x 180 mm interchangeable Teflon-coated sealing bars |
| Temperature range | Ambient to 300 °C |
| Sealing time | Variable by timer setting, 0–999.9 s |
| Maximum sealing force | 280 kg per 10 cm² at 80 psi |
Specifications are as published by the manufacturer, IDM Instruments. Download the product brochure or contact us to confirm the configuration for your laboratory.
Laboratory heat sealer: frequently asked questions
What does the IDM L0001 PRO heat sealer do?
It helps determine the sealing parameters of film, laminated films, coated paper and other flexible barrier materials as per ASTM F2029 and ASTM F88.
What sealing bar sizes are available?
5, 10 and 25 mm x 180 mm interchangeable Teflon-coated sealing bars.
What temperature, time and force range does it cover?
The temperature range is ambient to 300 °C, sealing time is variable by timer setting from 0 to 999.9 s, and the maximum sealing force at 80 psi is 280 kg per 10 cm².
Where can I find the heat sealer brochure and product video?
Use the Product Brochure and Product Video buttons at the top of this page, or contact us and we will send the details.
Where can I buy the IDM L0001 PRO heat sealer in India?
Multiflo Instruments, based in Navi Mumbai, supplies IDM Instruments equipment in India. Our team can advise on the L0001 PRO, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
