Key Features
- Navas patented bead fusion machine integrates state-of-the-art features to revolutionize XRF sample preparation
- The furnace features a carousel with a capacity ranging from 4 to 16 crucibles, providing exceptional precision and versatility
- Temperature range: 200 – 1150°C
- The carousel raises, rotates, and lowers to accurately position crucibles over the internal balance for precise weight measurements during fusion
- One instrument performs both bead fusion and LOI/LOF analysis

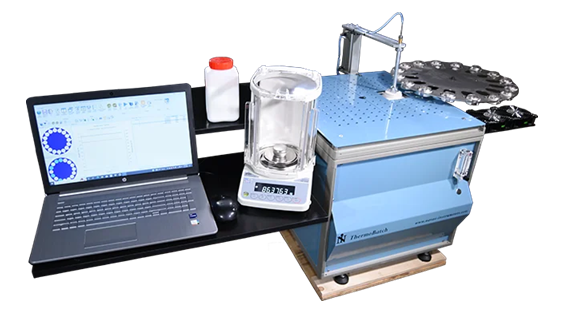

About the Navas FTA 2000 Fusion Bead Machine
The FTA 2000 from Navas Instruments, USA, is a patented bead fusion machine that integrates state-of-the-art features to revolutionize XRF sample preparation. One instrument performs both bead fusion and LOI/LOF analysis.
The furnace has a carousel with a capacity of 4 to 16 crucibles and a temperature range of 200–1150 °C. The carousel raises, rotates and lowers to position each crucible accurately over the internal balance, giving precise weight measurements during fusion.
FTA 2000 specifications
| Model | FTA 2000 |
|---|---|
| Manufacturer | Navas Instruments, USA |
| Purpose | Patented bead fusion machine for XRF sample preparation |
| Crucible carousel | Capacity of 4 to 16 crucibles |
| Temperature range | 200–1150 °C |
| Weighing | Carousel raises, rotates and lowers to position crucibles over the internal balance for precise weight measurements during fusion |
| Analysis | One instrument performs both bead fusion and LOI/LOF analysis |
Specifications are as published by the manufacturer, Navas Instruments. Download the product brochure or contact us to confirm the configuration for your laboratory.
Fusion bead machine: frequently asked questions
What does the Navas FTA 2000 do?
It is a patented bead fusion machine for XRF sample preparation, and the same instrument performs LOI/LOF analysis.
How many crucibles can the FTA 2000 handle?
The furnace carousel has a capacity of 4 to 16 crucibles.
What temperature range does it cover?
200–1150 °C.
How does the FTA 2000 weigh samples during fusion?
The carousel raises, rotates and lowers to position each crucible accurately over the internal balance, giving precise weight measurements during fusion.
Where can I buy the Navas FTA 2000 in India?
Multiflo Instruments, based in Navi Mumbai, supplies Navas Instruments equipment in India. Our team can advise on the FTA 2000, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
