Industrial Dynamics, Sweden
All In One Force Board
Model: ForceBoard
Key Features
- Full 2D force sensing patented technology
- Standard load capacity: 100N vertical, 50N horizontal
- Overload protected, portable & USB powered, no maintenance
- Programmable stepper motor for controlled motion/force applications and cyclic testing
- Position resolution of 0.01mm / 0.00039inch
- All-in-one friction, scratch, linear wear, abrasion, horizontal adhesion, horizontal tensile, compression, cyclic load, fatigue testing

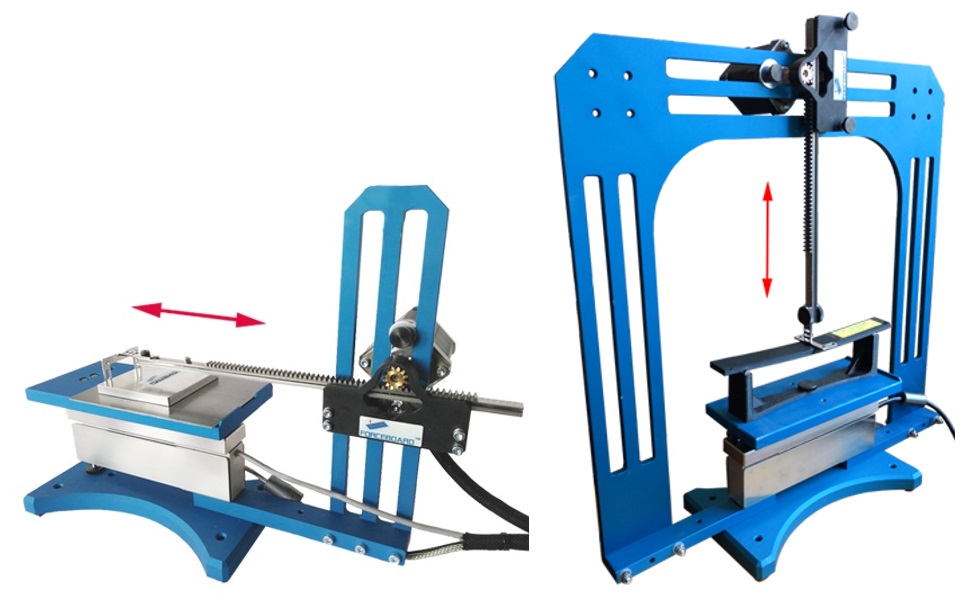

About the ForceBoard All-in-One Force Testing System
The ForceBoard from Industrial Dynamics, Sweden, is an all-in-one force board built on patented full 2D force sensing technology. It is overload protected, portable and USB powered, with no maintenance.
The standard load capacity is 100 N vertical and 50 N horizontal. A programmable stepper motor provides controlled motion and force applications and cyclic testing, with a position resolution of 0.01 mm (0.00039 inch). One instrument covers friction, scratch, linear wear, abrasion, horizontal adhesion, horizontal tensile, compression, cyclic load and fatigue testing.
ForceBoard specifications
| Model | ForceBoard |
|---|---|
| Manufacturer | Industrial Dynamics, Sweden |
| Sensing | Patented full 2D force sensing technology |
| Load capacity | Standard 100 N vertical, 50 N horizontal |
| Protection and power | Overload protected, portable and USB powered, no maintenance |
| Motion control | Programmable stepper motor for controlled motion and force applications and cyclic testing |
| Position resolution | 0.01 mm (0.00039 inch) |
| Tests | Friction, scratch, linear wear, abrasion, horizontal adhesion, horizontal tensile, compression, cyclic load and fatigue testing |
Specifications are as published by the manufacturer, Industrial Dynamics. Download the product brochure or contact us to confirm the configuration for your laboratory.
Force testing system: frequently asked questions
What tests can the ForceBoard perform?
It is an all-in-one system for friction, scratch, linear wear, abrasion, horizontal adhesion, horizontal tensile, compression, cyclic load and fatigue testing.
What load capacity does the ForceBoard have?
The standard load capacity is 100 N vertical and 50 N horizontal, and the instrument is overload protected.
How precise is the ForceBoard positioning, and can it run cyclic tests?
Position resolution is 0.01 mm (0.00039 inch). A programmable stepper motor provides controlled motion and force applications and cyclic testing.
Is the ForceBoard portable, and does it need maintenance?
It is portable and USB powered, overload protected, and needs no maintenance. A brochure and product video are available from the buttons at the top of this page.
Where can I buy the ForceBoard in India?
Multiflo Instruments, based in Navi Mumbai, supplies Industrial Dynamics instruments in India. Our team can advise on the ForceBoard, send a quotation, and arrange installation, training, calibration and after-sales service. Use the Contact Us button or call +91-22-44516175.
